Hazard Switch: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center, Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .

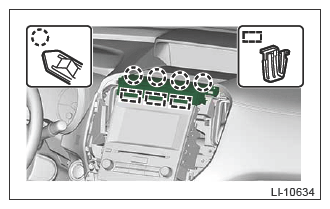

  3. Remove the switch assembly hazard.
    1. Release the clips and claws.
    2. Disconnect the connector and remove the switch assembly hazard.
      G13200812Courtesy of SUBARU OF AMERICA, INC.
