High-mounted Stop Light: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .

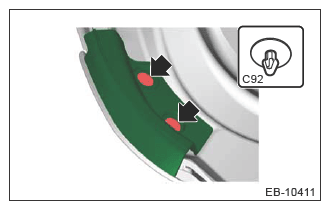

  3. Remove the drip rear gate. (Model without power rear gate)
    G13200832Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the sensor touch assembly. (Model with power rear gate) Ref. to POWER REAR GATE SYSTEM>Power Rear Gate Touch Sensor>REMOVAL .
  5. Remove the spoiler assembly roof. Ref. to EXTERIOR/INTERIOR TRIM>Roof Spoiler>REMOVAL .
  6. Remove the stop light assembly high-mounted.
    1. Remove the nuts and remove the stop light assembly high-mounted.
      G13200833Courtesy of SUBARU OF AMERICA, INC.
