License Plate Light: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the light assembly license.

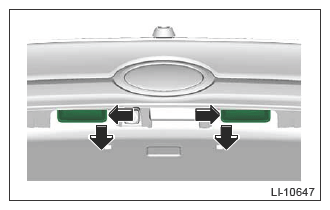

    1. Release the claws as shown in the figure, and pull out the light assembly license.
      G13200830Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the light assembly license.
  3. Remove the license plate light bulb.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

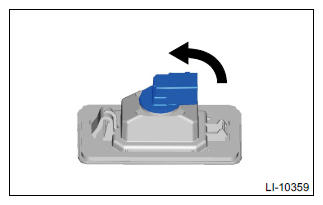

    1. Rotate the bulb socket in the direction of arrow shown in the figure to remove the license plate light bulb.
      G11245979Courtesy of SUBARU OF AMERICA, INC.
