Room Light: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not remove the light assembly reading when removing the bulb only.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel sub assembly. Ref. to EXTERIOR/INTERIOR TRIM>Roof Trim>REMOVAL .
  3. Remove the light assembly reading.

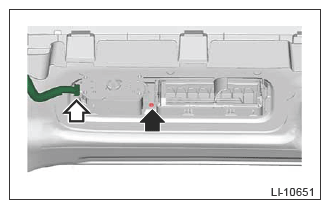

    1. Remove the connector and remove the screw.
      G13200838Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws and hooks, and remove the light assembly reading.
  4. Remove the reading light bulb.
    CAUTION:
    • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    • When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

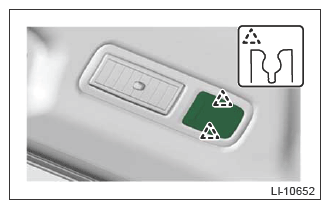

    1. Release the claws and remove the lens.
      G13200839Courtesy of SUBARU OF AMERICA, INC.

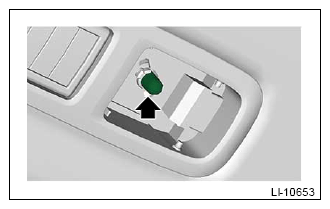

    2. Remove the reading light bulb.
      G13200840Courtesy of SUBARU OF AMERICA, INC.
