Brake Fluid: Inspection
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not let brake fluid come into contact with the painted surface of the vehicle body. Wash away with water immediately and wipe off if it is spilled by accident.
- Do not mix different kinds of brake fluid. Mixing different brands of fluid, or mixing different grades of fluid (even if they have the same brand name), may lead to severe accidents due to reduced brake fluid performance.
- When refilling brake fluid, do not allow dirt or dust to get into the oil reservoir COMPL.
- Always use new SUBARU genuine brake fluid when replacing or refilling the fluid. Do not reuse drained brake fluid.
- Check the fluid for discoloration.

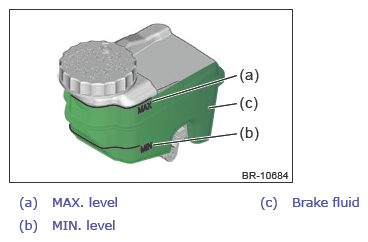

- Check that the amount of brake fluid is between the lines of "MIN" and "MAX" from the front view or from the forward right and left within 90°.CAUTION: Always check the level using the specified direction because there is a partition in the oil reservoir COMPL.
- If the brake fluid level is close to "MIN", check the brake pipe or brake hose for any leak first. Then, check that the brake fluid level is reduced due to brake pad wear.
- If the fluid is extremely discolored or the fluid level is less than the specified value after inspection, replenish or replace with the new fluid.
