Mt Model

  1. Apply grease to the shaft sliding surfaces of the internal gear.

    Preparation items:

    Grease: Multemp #6129 or equivalent

    G16524667Courtesy of SUBARU OF AMERICA, INC.
  2. Install the internal gear to the shaft.
    G16524652Courtesy of SUBARU OF AMERICA, INC.
  3. Install the overrunning clutch as follows:
    1. Apply grease to the spline portion of the shaft.

      Preparation items:

      Grease: Multemp #6129 or equivalent

      G16524669Courtesy of SUBARU OF AMERICA, INC.
    2. Set the overrunning clutch.
      G16524651Courtesy of SUBARU OF AMERICA, INC.
    3. Pass a new stopper (B) through, and attach a new snap ring (A).
      G16524650Courtesy of SUBARU OF AMERICA, INC.
    4. Using a press, pressure fit stopper (B) into snap ring (A).
    CAUTION: Do not apply any load to the internal gear.
    G16524672Courtesy of SUBARU OF AMERICA, INC.

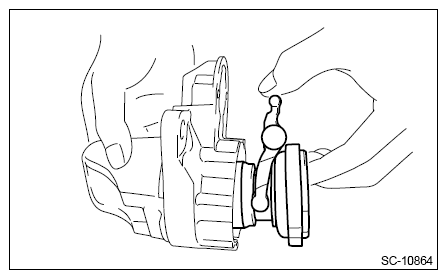

  4. Install the overrunning clutch, internal gear, shaft and shift lever as a single unit to the starter housing.
    NOTE: Apply grease to the moving parts of the shift lever.

    Preparation items:

    Grease: Multemp #6129 or equivalent

    G16524673Courtesy of SUBARU OF AMERICA, INC.

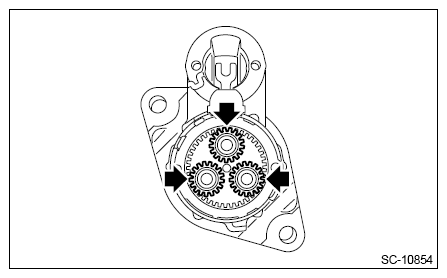

  5. Apply grease to the inside of the internal gear and pinion gear, and attach the pinion gear to the internal gear.
    NOTE: Apply grease evenly to the contact surfaces of each gear.

    Preparation items:

    Grease: Molykote® AG650 or equivalent

    G16524646Courtesy of SUBARU OF AMERICA, INC.

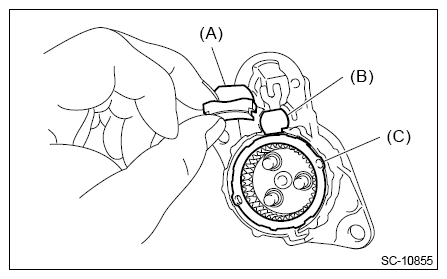

  6. Install the seal rubber (C), plate (B), and seal rubber (A).
    G16524647Courtesy of SUBARU OF AMERICA, INC.
  7. Set the armature assembly to the yoke assembly.
    G16524645Courtesy of SUBARU OF AMERICA, INC.

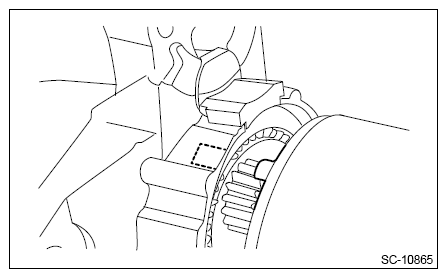

  8. Attach the armature assembly and yoke assembly to the starter housing together as a single unit.
    NOTE: Match the protrusion of the yoke assembly to the cutout of the starter housing.
    G16524677Courtesy of SUBARU OF AMERICA, INC.
  9. Use an appropriate tool (suitable attachment, etc.) to attach the brush holder assembly.
    NOTE: Be careful not to damage the brushes.
    G16524678Courtesy of SUBARU OF AMERICA, INC.
  10. Set the starter cover and install the bolts (A) and through bolts (B).

    Tightening torque:

    T1: 1.4 N.m (0.1 kgf-m, 1.0 ft-lb)

    T2: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

    Fig 1: Starter Cover Bolts With Torque Specification
    G16524679Courtesy of SUBARU OF AMERICA, INC.
  11. Install the magnet switch assembly.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G16524641Courtesy of SUBARU OF AMERICA, INC.
  12. Connect the cable to the terminal M.

    Tightening torque:

    10 N.m (1.0 kgf-m, 7.4 ft-lb)

    G16524640Courtesy of SUBARU OF AMERICA, INC.
