Oil Pipe

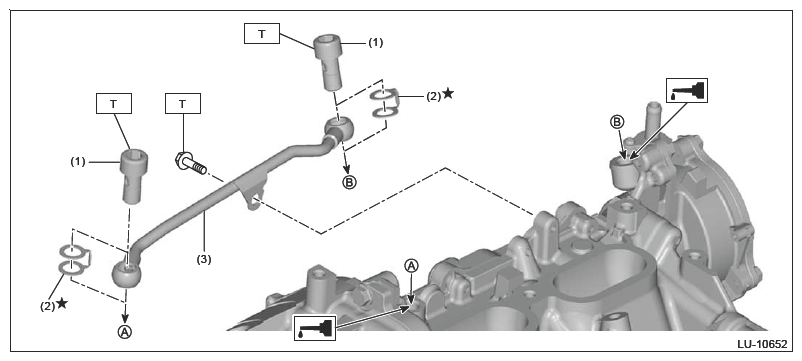

Fig 1: Oil Pipe Components Location
G16524426Courtesy of SUBARU OF AMERICA, INC.
(1) Union bolt
(2) Gasket
(3) Oil pipe

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to LUBRICATION (H4DO)>OIL PIPE>INSTALLATION .
