RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the strut tower bar RH. Ref. to FRONT SUSPENSION>STRUT TOWER BAR>REMOVAL .
  3. Remove the ECM. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE CONTROL MODULE (ECM)>REMOVAL .
  4. Disconnect the connector (A) and remove the ignition coil (RH side).

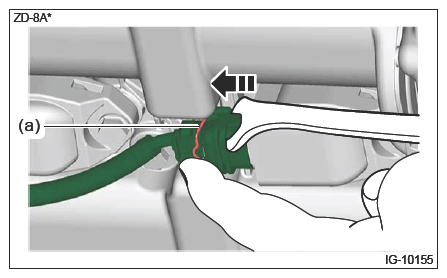

    NOTE: To disconnect the connector, while pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
G16524537Courtesy of SUBARU OF AMERICA, INC.
G16524538Courtesy of SUBARU OF AMERICA, INC.
