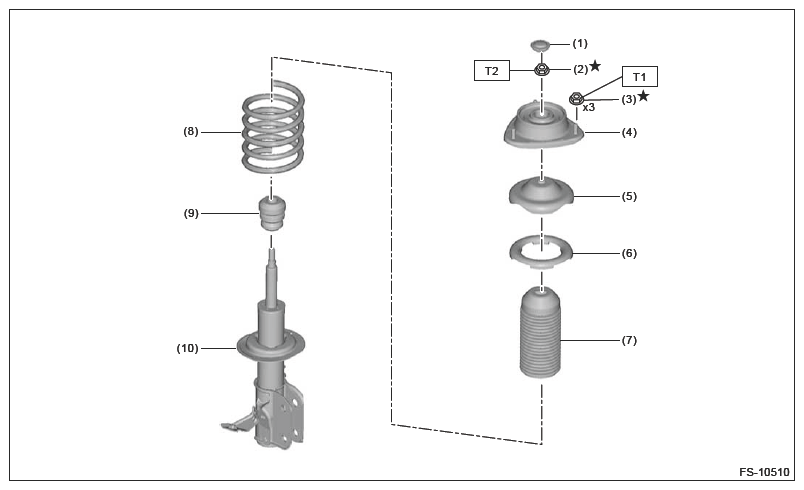

Front Strut
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Dust seal |
| (2) |
Self-locking nut |
| (3) |
Flange nut |
| (4) |
Mount strut front |
| (5) |
Spring seat UPR front |
| (6) |
Rubber seat UPR front |
| (7) |
Dust cover front |
| (8) |
Coil spring front |
| (9) |
Helper front |
| (10) |
Strut COMPL front |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 23 (2.3, 17.0)
T2: 55 (5.6, 40.6)
