Strut Tower Bar

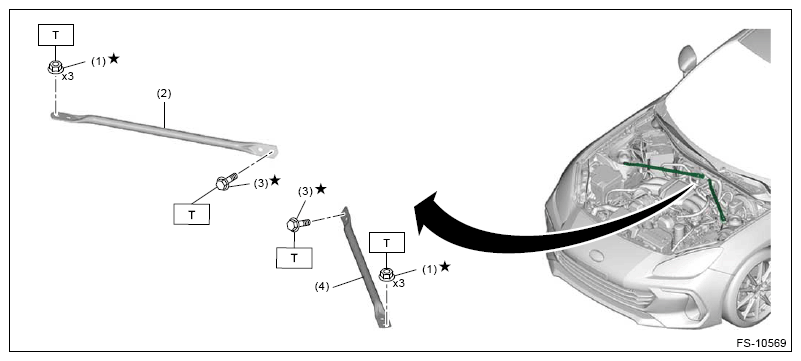

Fig 1: Strut Tower Bar Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Flange nut
(2)
Strut tower bar RH
(3)
Flange bolt
(4)
Strut tower bar LH
Tightening torque: N.m (kgf-m, ft-lb)
T: 16 (1.6, 11.8)
Courtesy of SUBARU OF AMERICA, INC.
