Extension Case: Removal

  1. Remove the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the ST (STAND ASSY) from the transmission body.
  3. Remove the dust cover.
    NOTE: Perform this procedure only when required.
    G16525835Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the extension case oil seal. Ref. to AUTOMATIC TRANSMISSION>EXTENSION CASE OIL SEAL>REPLACEMENT .
    NOTE: Perform this procedure only when required.

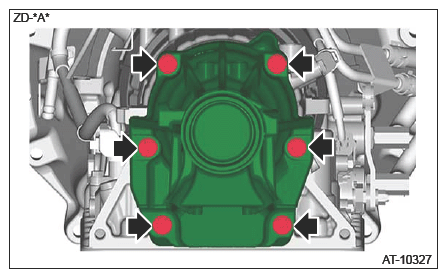

  5. Remove the bolts securing the extension case.
    G16525836Courtesy of SUBARU OF AMERICA, INC.

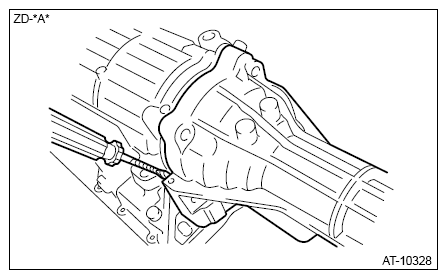

  6. Using a flat tip screwdriver wrapped with protection tape, expand the clearance and remove the extension case.
    CAUTION: Be careful not to damage the extension case.
    G16525837Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the liquid gasket from the extension case and the transmission case.
  8. Remove the snap ring.
    NOTE: Perform this procedure only when required.
    G16525838Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the rear output shaft thrust bearing race, output shaft thrust bearing, and front output shaft thrust bearing race.
    G16525839Courtesy of SUBARU OF AMERICA, INC.
    (A) Transmission case
    (B) Front output shaft thrust bearing race
    (C) Output shaft thrust bearing
    (D) Rear output shaft thrust bearing race
  10. Measure and record the thickness of the rear output shaft thrust bearing race.
