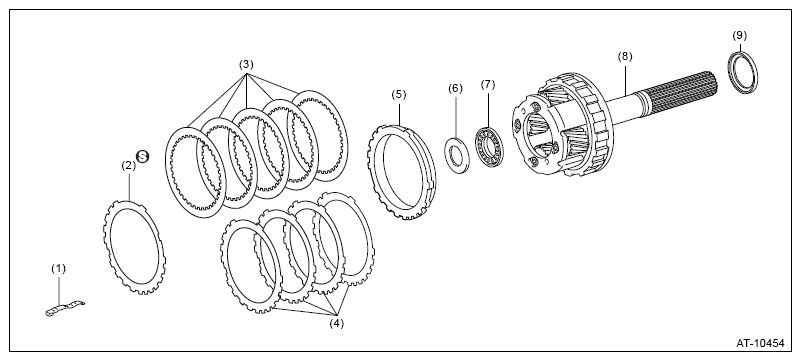

Rear Planetary Gear

Courtesy of SUBARU OF AMERICA, INC.

(1)	Brake plate stopper spring
(2)	No. 4 front brake flange
(3)	No. 4 brake disc
(4)	No. 4 brake plate
(5)	No. 4 rear brake flange
(6)	Front thrust bearing race
(7)	Thrust needle roller bearing
(8)	Rear planetary gear
(9)	Rear thrust bearing race
