Intermediate Shaft: Assembly

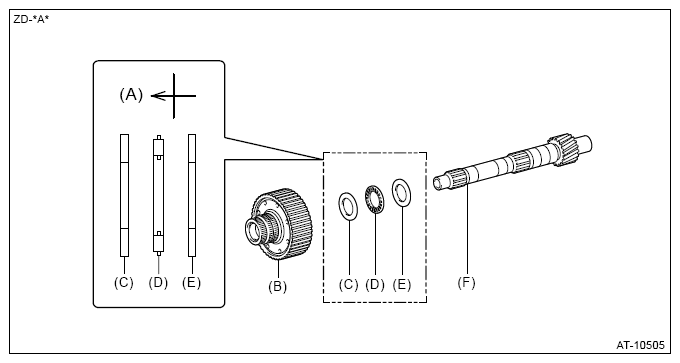

- Install the rear planetary ring gear flange, front thrust bearing race, thrust needle roller bearing, and rear thrust bearing race.NOTE: Make sure to install the front thrust bearing race, thrust needle roller bearing, and rear thrust bearing race in the right direction.
| (A) | Oil pump side |
| (B) | Rear planetary ring gear flange |
| (C) | Front thrust bearing race |
| (D) | Thrust needle roller bearing |
| (E) | Rear thrust bearing race |
| (F) | Intermediate shaft |
