Hanger Bracket

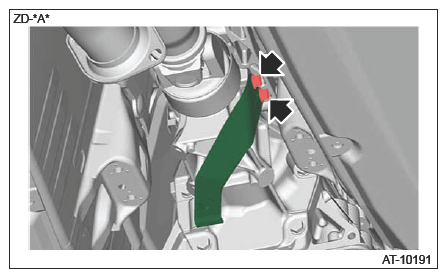

Install the hanger bracket.
Tightening torque:
23 N.m (2.3 kgf-m, 17.0 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Ref. to
EXHAUST (H4DO)>CENTER EXHAUST PIPE>INSTALLATION
.
