Clutch Assembly

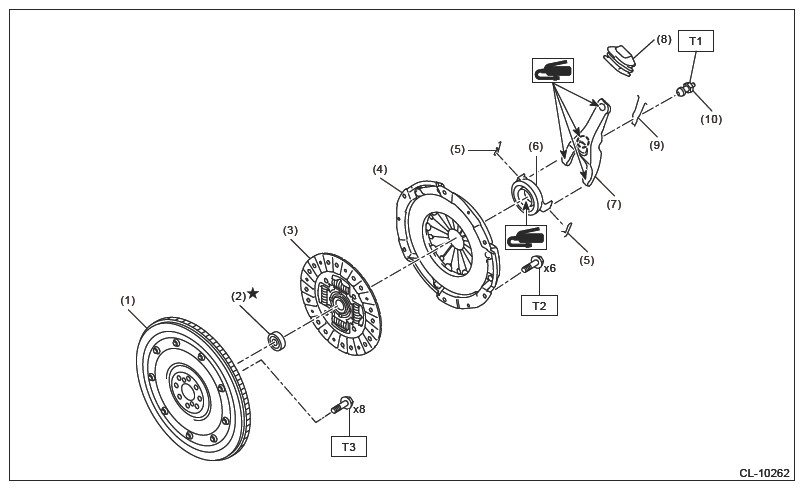

Fig 1: Clutch Assembly Components Location

G16526358

Courtesy of SUBARU OF AMERICA, INC.

(1)	Flywheel
(2)	Pilot bearing
(3)	Clutch disc
(4)	Clutch cover
(5)	Clip
(6)	Release bearing
(7)	Release lever
(8)	Dust cover
(9)	Lever spring
(10)	Pivot

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>INSTALLATION .

T3: Ref. to CLUTCH SYSTEM>FLYWHEEL>INSTALLATION .
