Switch And Harness

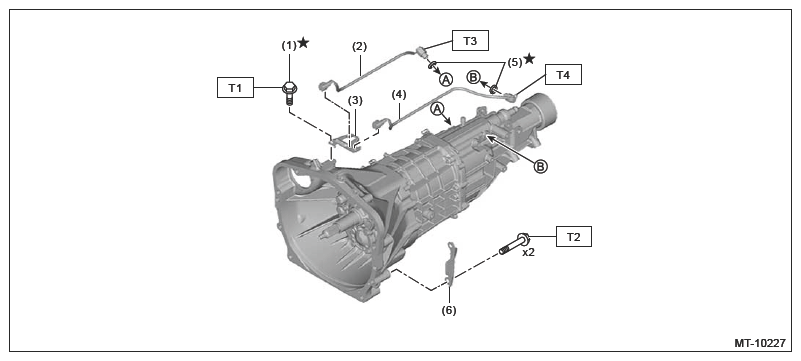

Fig 1: Switch And Harness Components Location

G16526067

Courtesy of SUBARU OF AMERICA, INC.

(1)	Bolt
(2)	Back-up light switch
(3)	Harness bracket
(4)	Neutral position switch
(5)	Gasket
(6)	Cover plate

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.2)

T2: 50 (5.1, 36.9)

T3: Ref. to MANUAL TRANSMISSION>SWITCHES AND HARNESS>INSTALLATION>BACK-UP LIGHT SWITCH .

T4: Ref. to MANUAL TRANSMISSION>SWITCHES AND HARNESS>INSTALLATION>NEUTRAL POSITION SWITCH .
