Rear Planetary Gear: Assembly

  1. Install the thrust needle roller bearing.
    NOTE: Make sure to install the thrust needle roller bearing in the right direction.
  2. Use vaseline to attach the front thrust bearing race.
    NOTE: Make sure to install the front thrust bearing race in the right direction.
  3. Use vaseline to attach the rear thrust bearing race.
    NOTE: Make sure to install the rear thrust bearing race in the right direction.

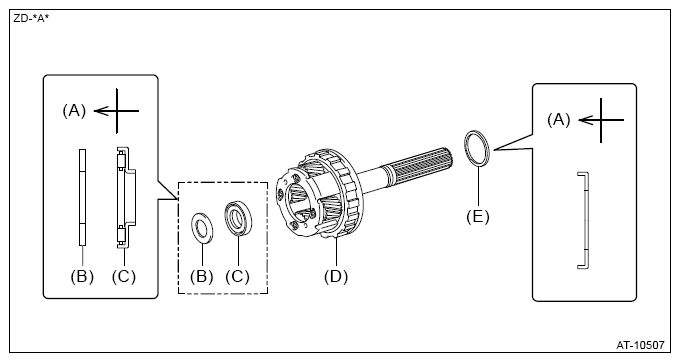

G16526041Courtesy of SUBARU OF AMERICA, INC.
(A) Oil pump side
(B) Front thrust bearing race
(C) Thrust needle roller bearing
(D) Rear planetary gear
(E) Rear thrust bearing race
