Master Cylinder

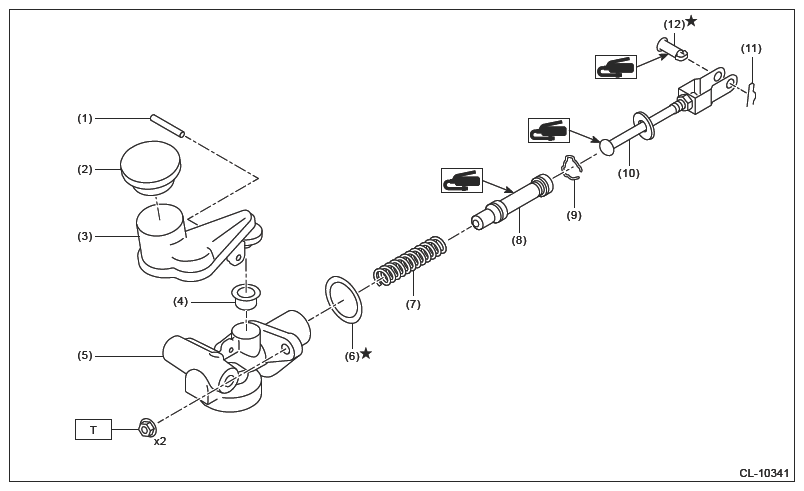

Fig 1: Master Cylinder Components Location

G16526360

Courtesy of SUBARU OF AMERICA, INC.

(1)

Pin⁽¹⁾

(2)

Reservoir tank cap

(3)

Reservoir tank⁽¹⁾

(4)

Seal reservoir

(5)

Master cylinder⁽¹⁾

(6)

Seat

(7)

Spring

(8)

Piston

(9)

Snap ring

(10)

Push rod⁽¹⁾

(11)

Snap pin

(12)

Clevis pin

⁽¹⁾	The pin, reservoir tank, master cylinder, and push rod are set parts.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
