Airbag Control Module

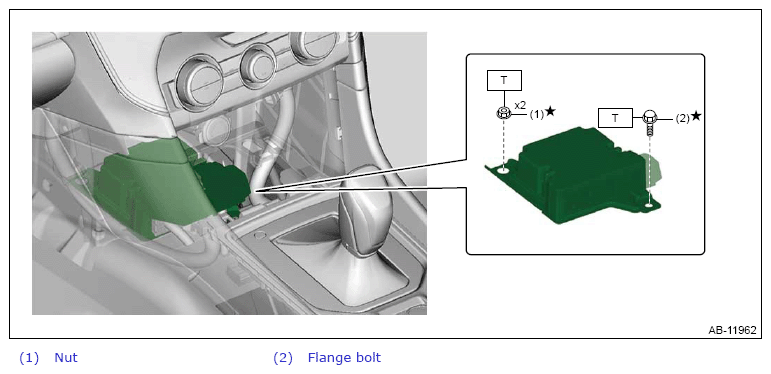

Fig 1: Airbag Control Module Components (With Torque Specification)
G14394532Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
