System Block Diagram

G13595844Courtesy of SUBARU OF AMERICA, INC.
G13595845Courtesy of SUBARU OF AMERICA, INC.

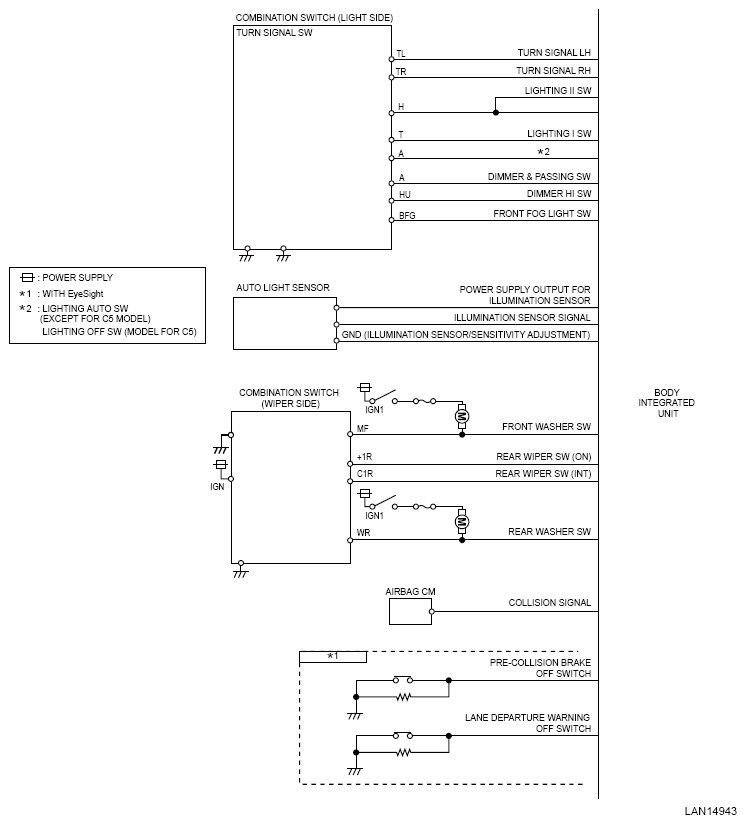

G14415627Courtesy of SUBARU OF AMERICA, INC.

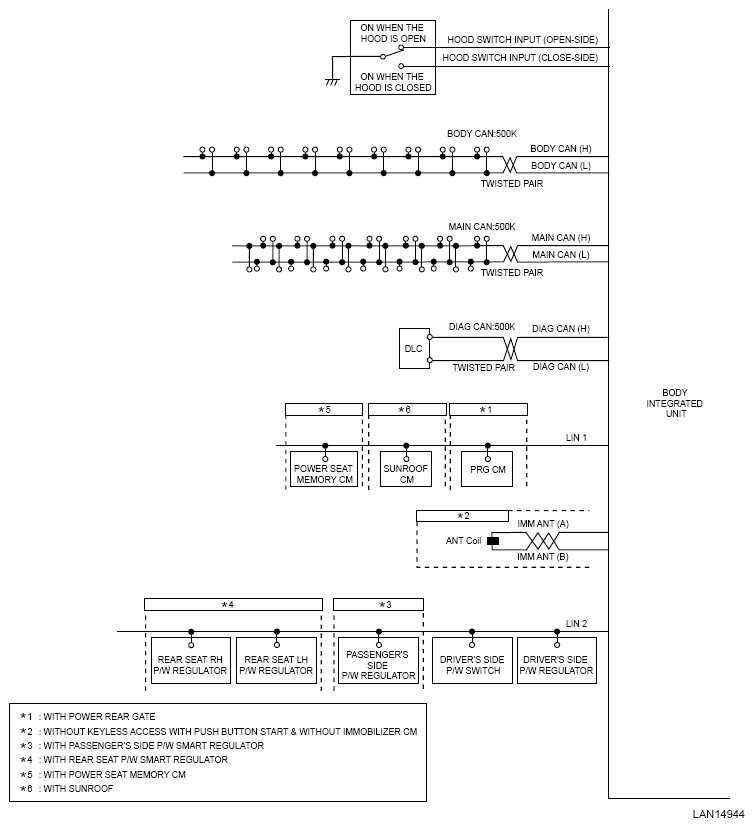

G14415628Courtesy of SUBARU OF AMERICA, INC.
G13229040Courtesy of SUBARU OF AMERICA, INC.

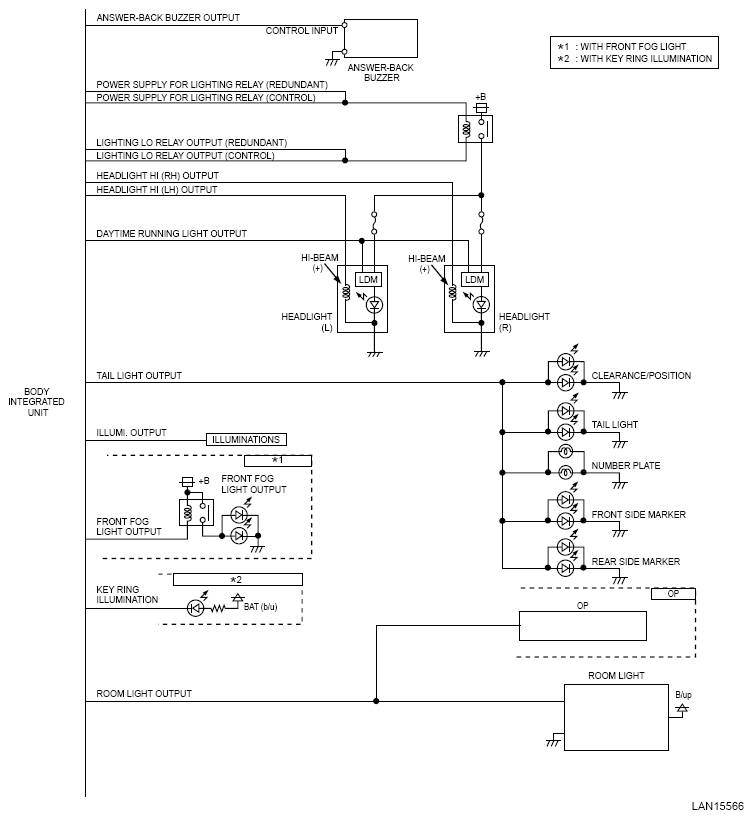

G14415630Courtesy of SUBARU OF AMERICA, INC.
G13595850Courtesy of SUBARU OF AMERICA, INC.
G13229043Courtesy of SUBARU OF AMERICA, INC.
