Extension Case: Disassembly

Remove the dust cover.

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from the transfer clutch piston using the ST and a press.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.

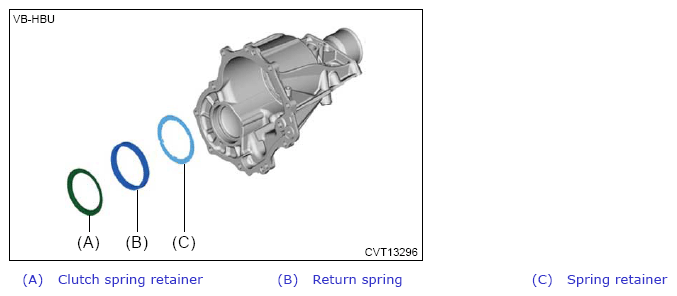

Remove the clutch spring retainer, return spring and spring retainer.

Courtesy of SUBARU OF AMERICA, INC.
Blow compressed air through the hole shown in the figure, and remove the transfer clutch piston.

Courtesy of SUBARU OF AMERICA, INC.
Remove the D-ring and O-ring from the transfer clutch piston.

Courtesy of SUBARU OF AMERICA, INC.

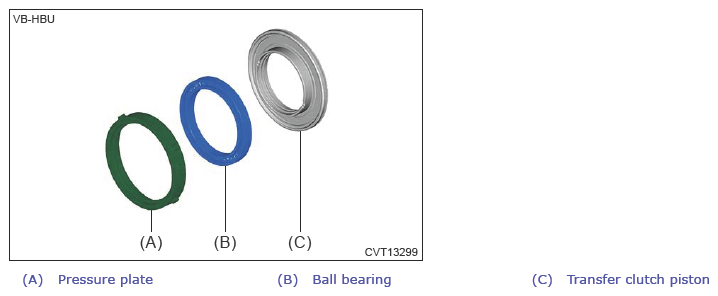

Remove the pressure plate and ball bearing.

Courtesy of SUBARU OF AMERICA, INC.
Remove the extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE OIL SEAL>REPLACEMENT
Remove the plug.

Courtesy of SUBARU OF AMERICA, INC.
