System Block Diagram

G13873563

Courtesy of SUBARU OF AMERICA, INC.

G16447340

Courtesy of SUBARU OF AMERICA, INC.

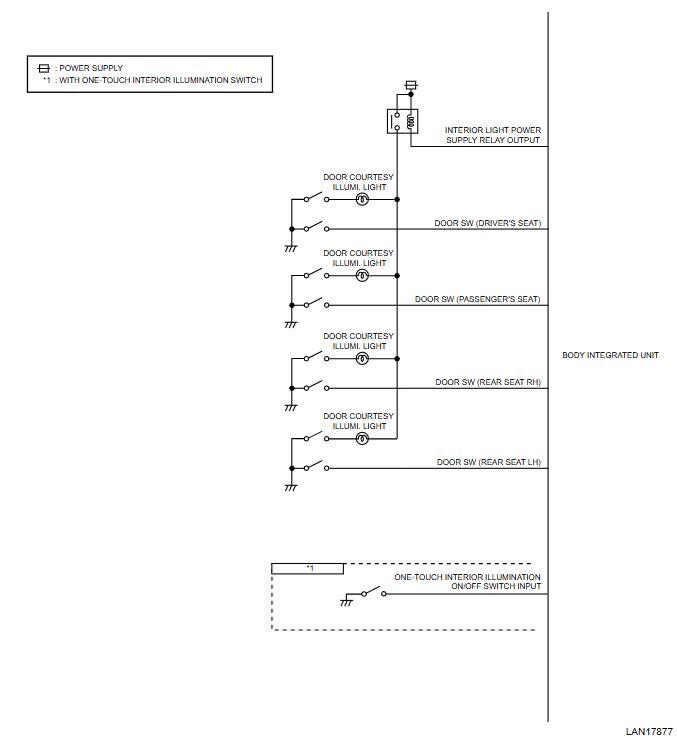

G00680235

Courtesy of SUBARU OF AMERICA, INC.

G16447342

Courtesy of SUBARU OF AMERICA, INC.

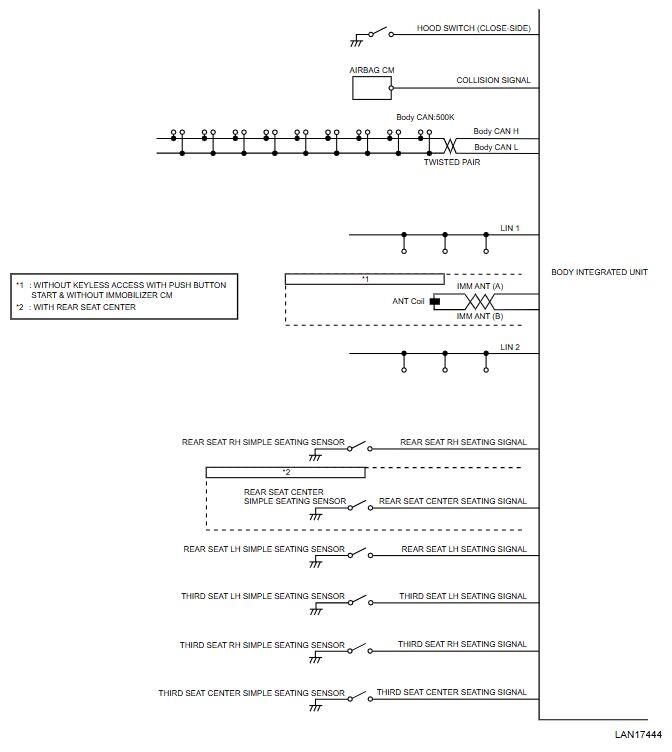

G00680236

Courtesy of SUBARU OF AMERICA, INC.

G16447344

Courtesy of SUBARU OF AMERICA, INC.

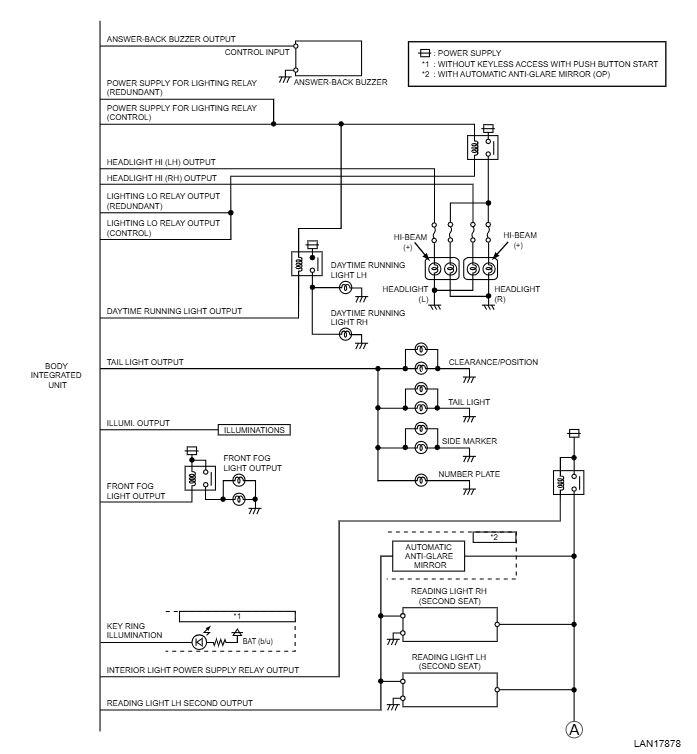

G00680237

Courtesy of SUBARU OF AMERICA, INC.

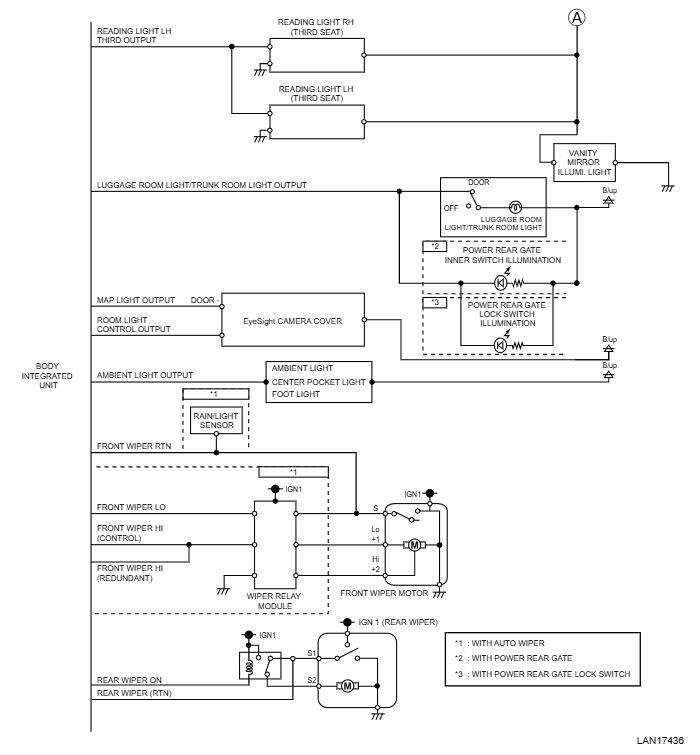

G00680238

Courtesy of SUBARU OF AMERICA, INC.

G13873571

Courtesy of SUBARU OF AMERICA, INC.
