Battery Cable Assembly: Removal

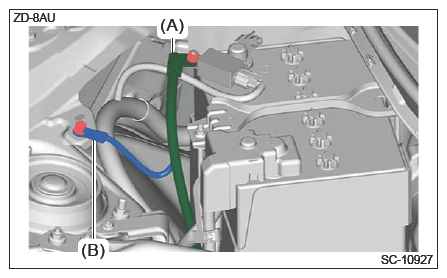

Disconnect the ground terminal (A) and ground terminal (B).

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the slow blow fuse (A) from the terminal base, and remove the terminal (B).

Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt securing the bracket and remove the clip securing the battery cable assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the collector cover. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>COLLECTOR COVER>REMOVAL .
Remove the connector (A) and connector (B).
Remove the clip (C) and clip (D) securing the bulkhead wiring harness, and place it aside so that it does not interfere with work.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and terminal B (B).

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground terminal.
NOTE: In order to prevent damaging the ground terminal, fix the ground terminal when loosing the bolt, and avoid the part from rotating together while loosening the bolt.

Courtesy of SUBARU OF AMERICA, INC.
Remove the connector (A) and bracket (B) from the engine rear hanger.
Remove the clip (C) and remove the battery cable assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the bracket (A) and bracket (B) from the battery cable assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the terminal base.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the terminal (A) and the terminal (B), and remove the slow blow fuse (C).

NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
