High-Pressure Fuel Pump Case

  1. Remove the high-pressure fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL PUMP>REMOVAL>HIGH-PRESSURE FUEL PUMP .
  2. Using TORX °E10, remove the bolts securing the high-pressure fuel pump case.
    G16523313Courtesy of SUBARU OF AMERICA, INC.

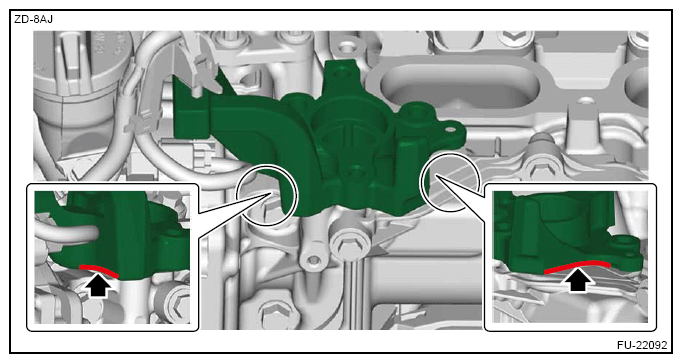

  3. Pry the points shown in the figure with a crowbar wrapped by protective tape, and then remove the high-pressure fuel pump case.
    G16523314Courtesy of SUBARU OF AMERICA, INC.
  4. Remove liquid gasket from the high-pressure fuel pump case and the cam carrier assembly LH.
