High-Pressure Fuel Pump

CAUTION:

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Perform the steps below to remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION: Do not disconnect the PCV hose No. 2 (a).
1. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
2. Loosen the clamp, remove the air intake boot, and place it aside so that it does not interfere with the work.
  CAUTION: Be careful not to pull out the PCV hose No. 2 (a).
Courtesy of SUBARU OF AMERICA, INC.
Remove the high-pressure fuel delivery pipes. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE .
Using TORX PLUS° 40IP, remove the high-pressure fuel pump.
CAUTION:
- Carefully remove it because the high-pressure fuel pump may be pressurized depending on the camshaft position.

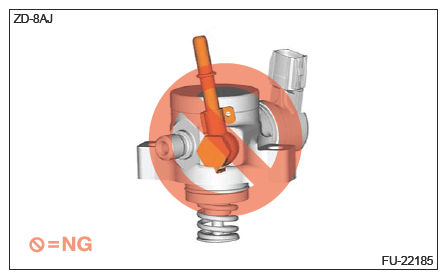

- Do not remove the part shown in the figure as it cannot be disassembled.
Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

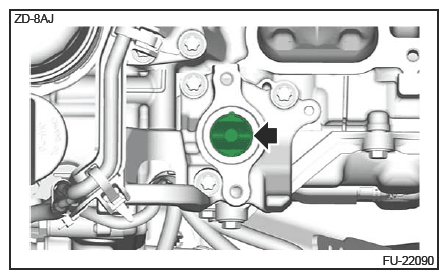

Remove the fuel pump lifter.

Courtesy of SUBARU OF AMERICA, INC.
