Tie-Down Range
For ground transportation

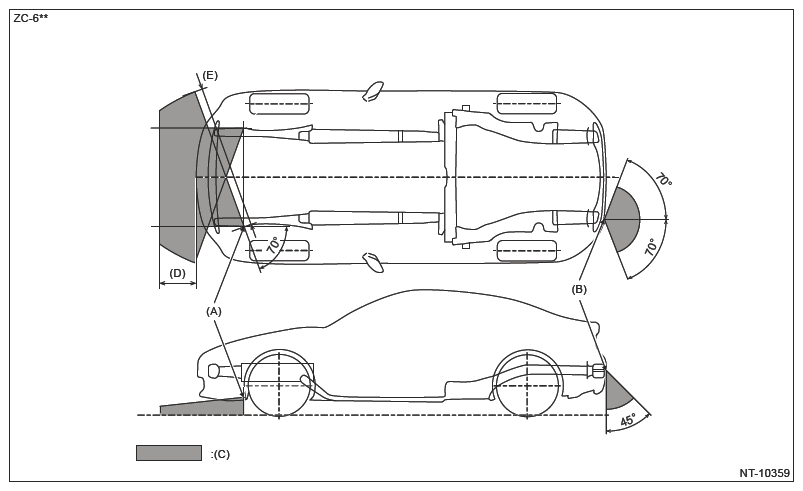

- Tie-down at 4 locationsCAUTION: When the vehicle is tied down toward the vehicle inside, hook the hooks on the rear tie-down holes from vehicle inside. When the vehicle is tied down toward the vehicle outside, hook the hooks from vehicle outside.

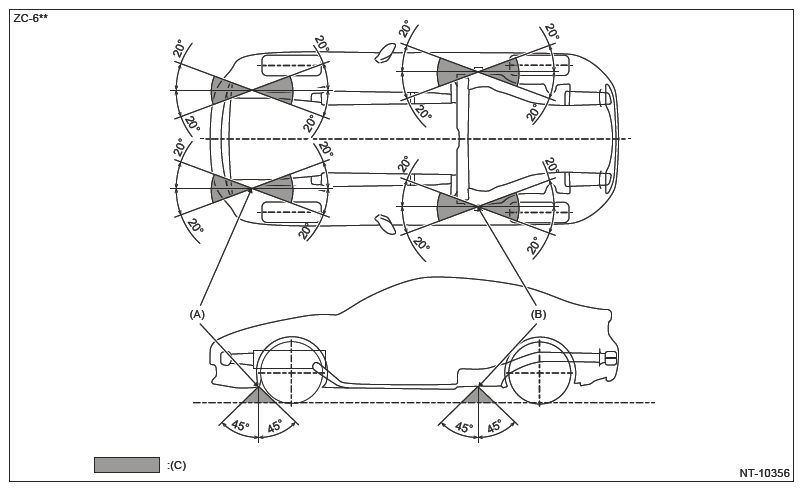

(A) Front tie-down hook (B) Rear tie-down hole (C) Chain pulling range at tie-down condition - Tie-down at 2 locationsCAUTION: Pull the tie-down hook rope evenly to the front and rear side. Do not hook the hooks outside the wheelbase to avoid up/down pitching.NOTE: The length (D) should be the same.
| (A) | Rear tie-down hole |
| (C) | Hook |
| (D) | Rope length |
| (B) | Tie-down hook |
For sea transportation
CAUTION:
Hook on the front tie-down hook from vehicle inside, and tie down toward vehicle inside. Also, ensure that the open part of the hooks engaged with the front tie-down hook and the towing hook (eyebolt) faces downwards in order to prevent dropping off. The towing hooks (eyebolts) are exclusively used for towing and sea transportation tie-down, and do not use them for ground and freight transportation.
| (A) | Front tie-down hook |
| (B) | Towing hook (eyebolt) |
| (C) | Chain pulling range at tie-down condition |
| (D) | 400 mm (15.7 in) |
| (E) | 1, 500 mm (59.1 in) |
