Electric Fluid Pump: Disassembly

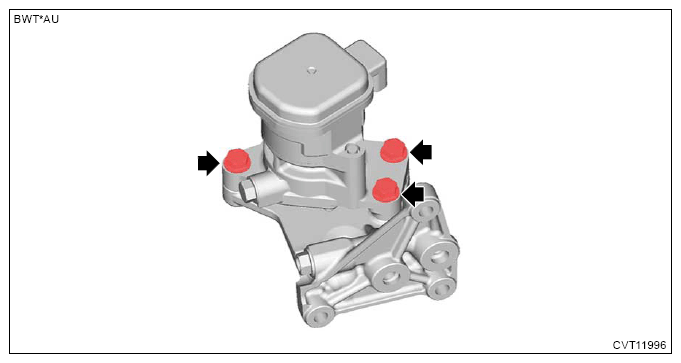

  1. Remove the electric oil pump.
    G13603245Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the O-rings.
    G13225752Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the plug.
G13225753Courtesy of SUBARU OF AMERICA, INC.
