Auto Start Stop System (Diagnostics): Electrical Component Location: Location

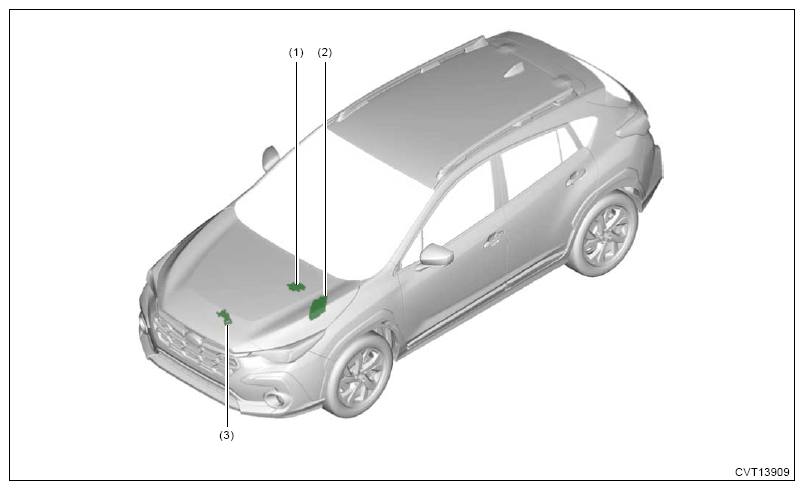

| (1) | TCM |
| (2) | ECM |
| (3) | Front hood lock ASSY (with integrated hood switch) |

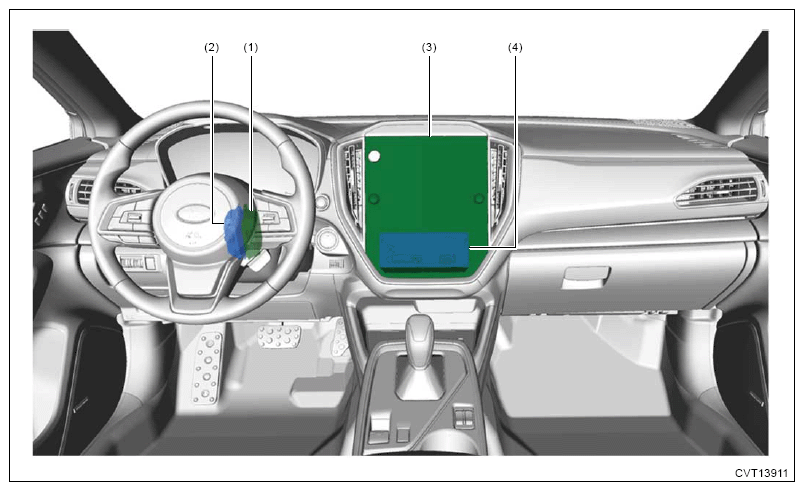

| (1) | DC/DC converter 1 |
| (2) | DC/DC converter 2 (model with audio amplifier) |
| (3) | Auto Start Stop cancel switch (center information display) |
| (4) | Cockpit control module |
| (1) | Electric oil pump |
| (2) | Inhibitor switch |
| (1) | Electric oil pump relay |
| (2) | Starter relay |
| (3) | Starter cut relay |
