System Block Diagram

G14615330

Courtesy of SUBARU OF AMERICA, INC.

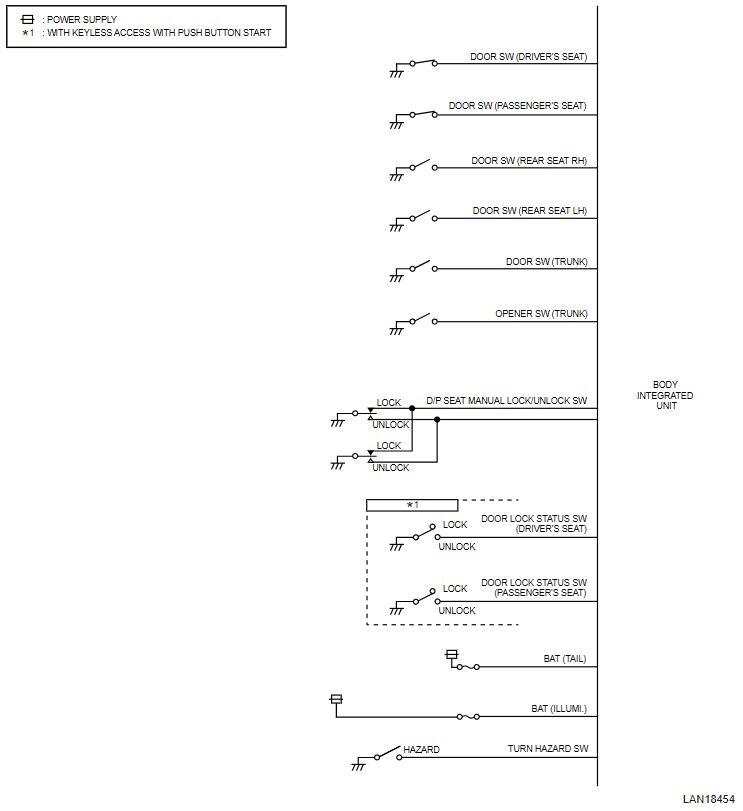

G00674250

Courtesy of SUBARU OF AMERICA, INC.

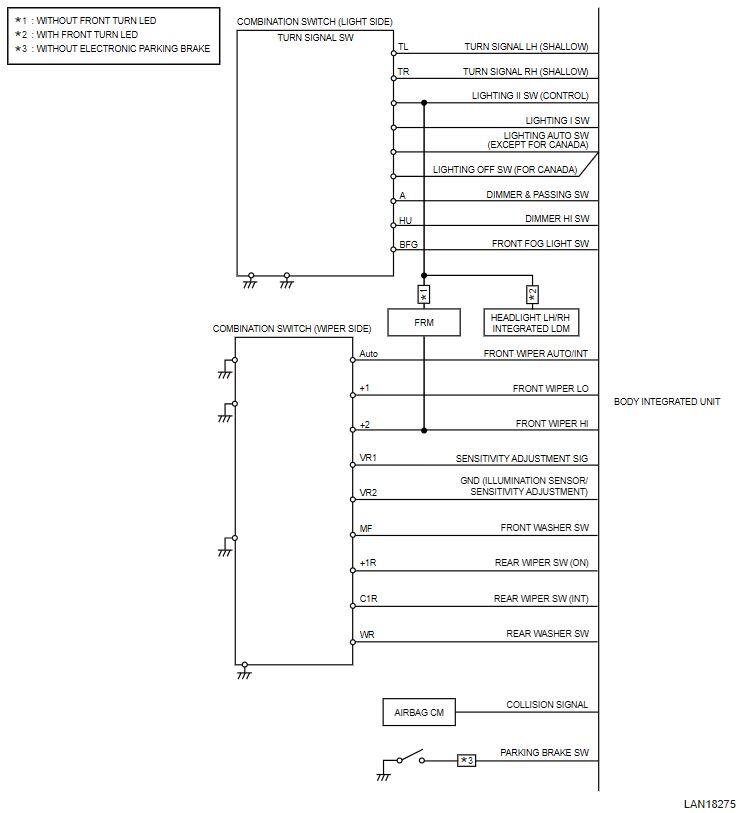

G00685951

Courtesy of SUBARU OF AMERICA, INC.

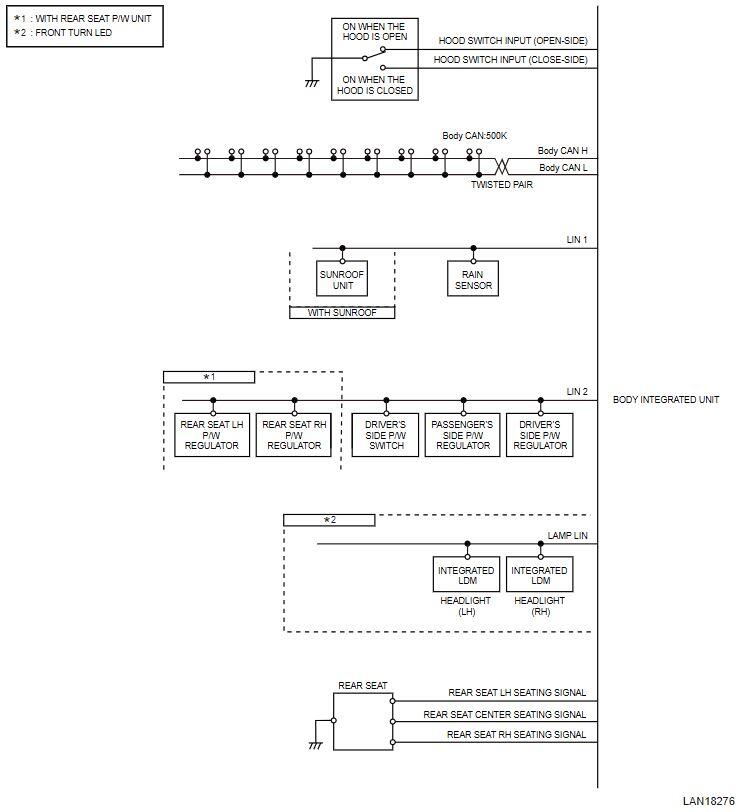

G00685952

Courtesy of SUBARU OF AMERICA, INC.

G14615334

Courtesy of SUBARU OF AMERICA, INC.

G14615335

Courtesy of SUBARU OF AMERICA, INC.

G16543040

Courtesy of SUBARU OF AMERICA, INC.

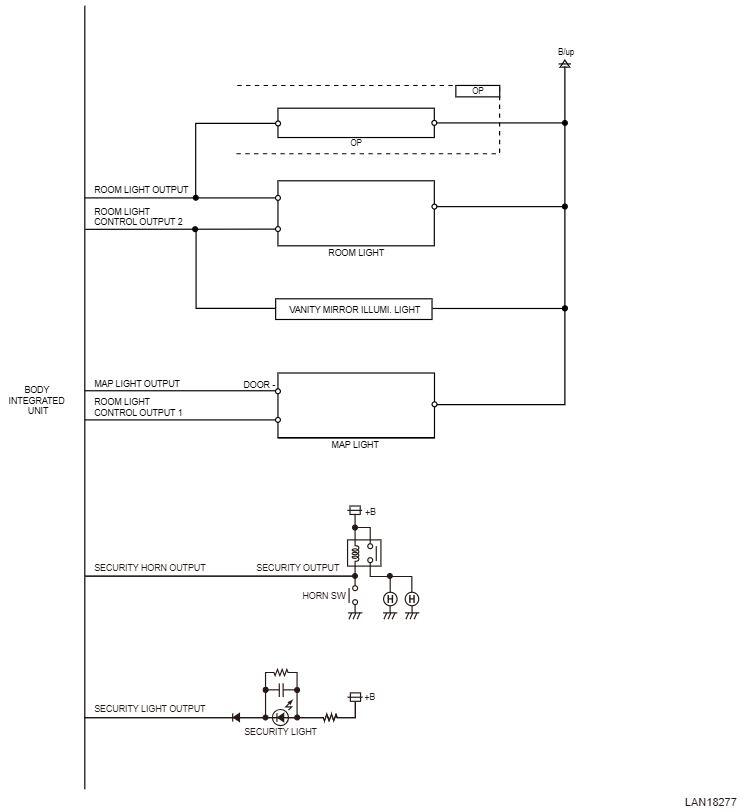

G00685953

Courtesy of SUBARU OF AMERICA, INC.

G14615338

Courtesy of SUBARU OF AMERICA, INC.
