Hook Spring

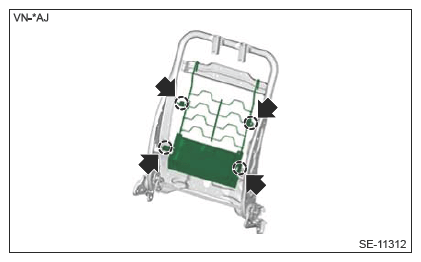

Check the flat mat hook spring by applying weight to the backrest assembly. (Except for RECARO® seat model)

NOTE: If the appropriate stiffness is not obtained by applying weight to the backrest assembly, the hook spring may be disengaged.

Courtesy of SUBARU OF AMERICA, INC.

If it is due to the deformation of the hook spring, replace the flat mat & hook spring assembly with a new part.

Courtesy of SUBARU OF AMERICA, INC.
