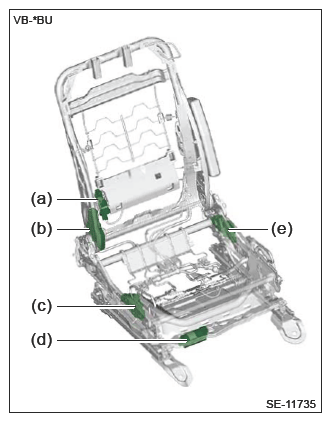

Motor Layout

G16541070Courtesy of SUBARU OF AMERICA, INC.
(a) Lumbar motor
(c) Tilt motor
(e) Lifter motor
(b) Reclining motor
(d) Slide motor
(e) Lifter motor
