Standard Damper Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Turn over the mud guard rear.
    1. Remove the clip.
    2. Turn over the mud guard rear.
    G00686023Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the sensor sub assembly rear.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.

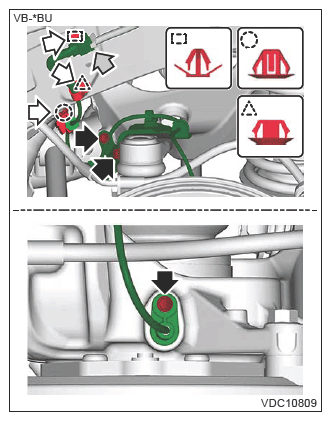

    1. Disconnect the sensor sub assembly rear connector.
    2. Remove the bolt and harness clip, and remove the sensor sub assembly rear.
      G14602129Courtesy of SUBARU OF AMERICA, INC.
