Crossmember Support: Removal

  1. Remove the under guard front. (When the crossmember support front is removed) Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

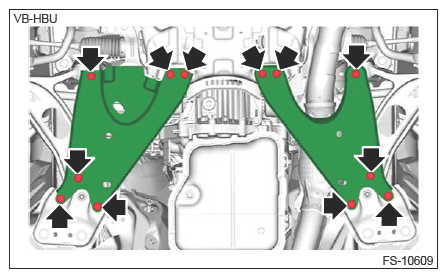

  2. Remove the bolt, and remove the crossmember support rear.
    G14601723Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt, and remove the crossmember support front.
G14601724Courtesy of SUBARU OF AMERICA, INC.
