Stabilizer Bushing

  1. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  2. Remove the rubber bushing stabilizer front.

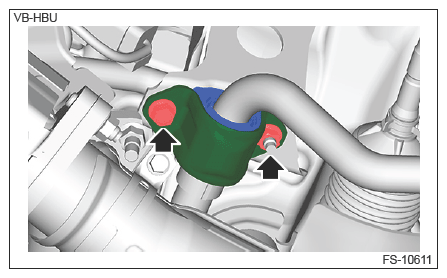

    1. Remove the bolt and nut, and remove the clamp stabilizer.
    2. Remove the rubber bushing stabilizer front.
    G14601726Courtesy of SUBARU OF AMERICA, INC.
