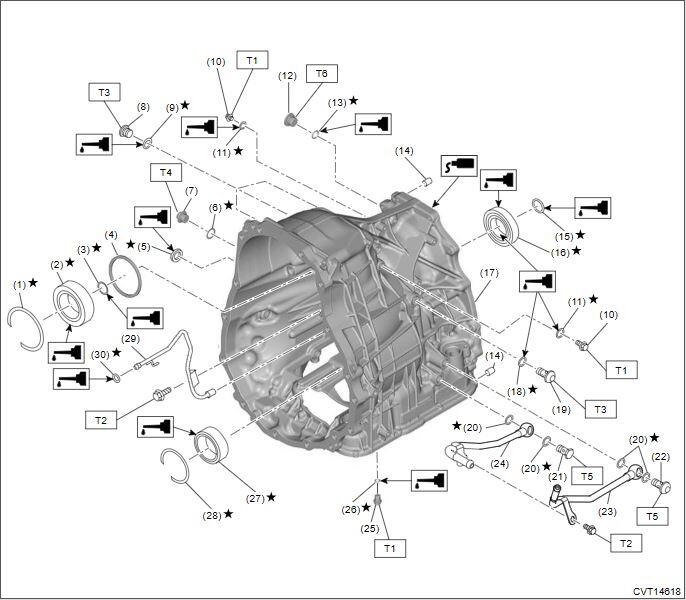

Transmission Case
| (1) | Snap ring |
| (2) | Roller bearing |
| (3) | Seal ring |
| (4) | Spacer |
| (5) | Oil seal |
| (6) | Gasket |
| (7) | Filler plug (for overhaul) |
| (8) | Plug |
| (9) | O-ring |
| (10) | Plug |
| (11) | O-ring |
| (12) | O-ring |
| (13) | Oil strainer |
| (14) | Straight pin |
| (15) | Seal ring |
| (16) | Ball bearing |
| (17) | Transmission case |
| (18) | O-ring |
| (19) | Plug |
| (20) | Gasket |
| (21) | Union bolt |
| (22) | Union bolt |
| (23) | CVTF cooler outlet pipe |
| (24) | CVTF cooler inlet pipe |
| (25) | Plug |
| (26) | O-ring |
| (27) | Roller bearing |
| (28) | Snap ring |
| (29) | Lubrication pipe |
| (30) | O-ring |
Tightening torque: Nm (kgf-m. ft-lb)
T1: 13 (1.3, 9.6)
T2: 16 (1.6, 11.8)
T3: 25 (2.5, 18.4)
T4: 35 (3.6, 25.8)
T5: 40 (4.1, 29.5)
T6: 50 (5.1, 36.9)
