Rear Wheel Speed Sensor: Removal
CAUTION:
If water or oil contacts the connector terminal of rear wheel speed sensor, replace it with a new part.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .
- Remove the center exhaust cover. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL
.NOTE: Remove the center exhaust cover only.

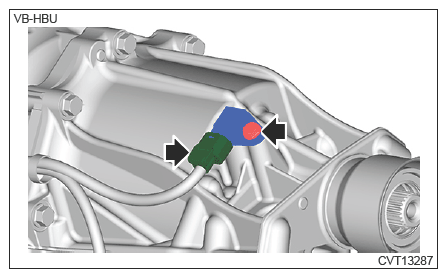

- Disconnect the connector and remove the rear wheel speed sensor.
