Operation Check

  1. Disconnect actuator connector and remove actuator cover. Carefully remove wire terminals No. 2 and 3 from actuator connector. See Figure and Fig 1 . Connect test leads between positive battery terminal and actuator terminals No. 2 and 3. Connect test leads between negative battery terminal and actuator terminals No. 1 and 4. SeeFig 2 . Actuator should operate to fully open position. After test is completed, carefully reinsert wire terminal back into connector.

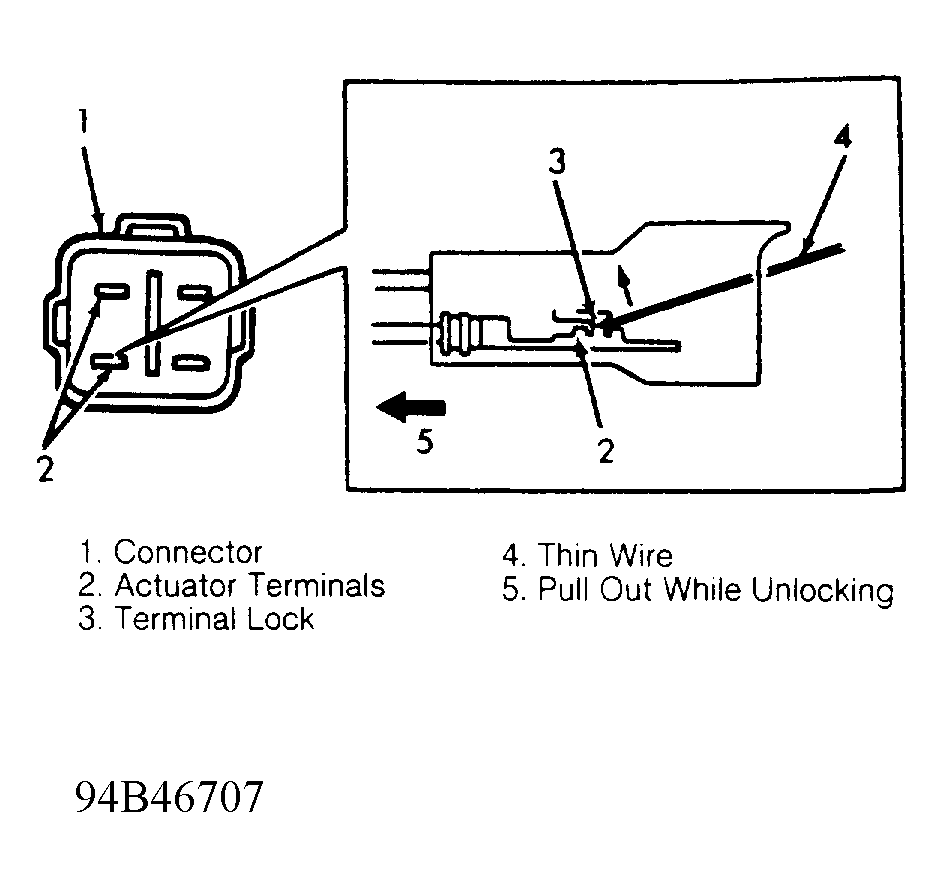

    Fig 1: Removing Wire Terminals From Actuator Connector
    G94B46707Courtesy of SUZUKI OF AMERICA CORP.

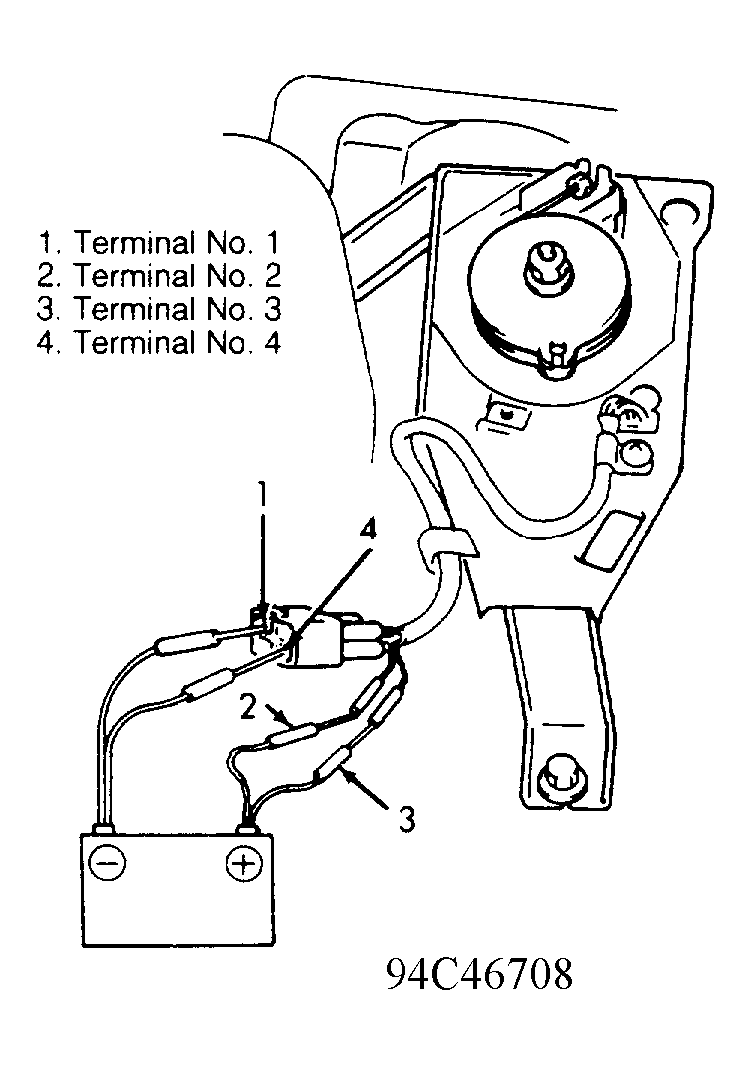

    Fig 2: Testing Actuator For Fully Open Operation
    G94C46708Courtesy of SUZUKI OF AMERICA CORP.
  2. Carefully remove wire terminals No. 3 and 4 from actuator connector. Connect test leads between positive battery terminal and actuator terminals No. 3 and 4. Connect test leads between negative battery terminal and actuator terminals No. 1 and 2. SeeFig 3 . Actuator should operate to fully closed position. If actuator does not operate as described, replace actuator. After test is completed, carefully reinsert wire terminal back into connector.

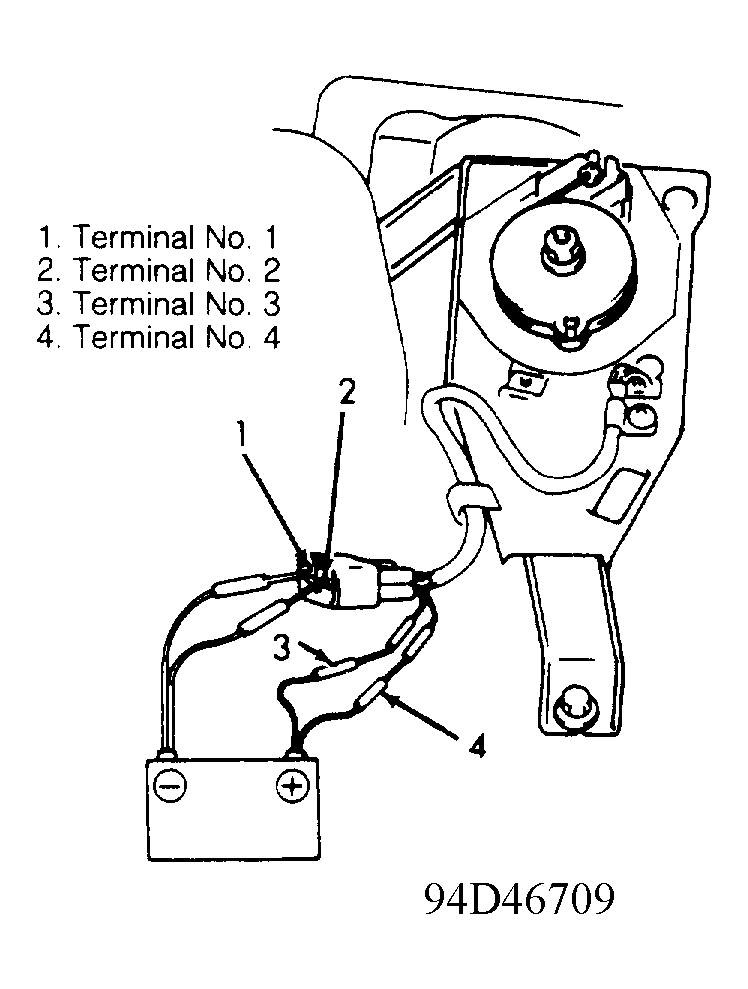

Fig 3: Testing Actuator For Fully Closed Operation
G94D46709Courtesy of SUZUKI OF AMERICA CORP.
