Circuit Resistance Charts

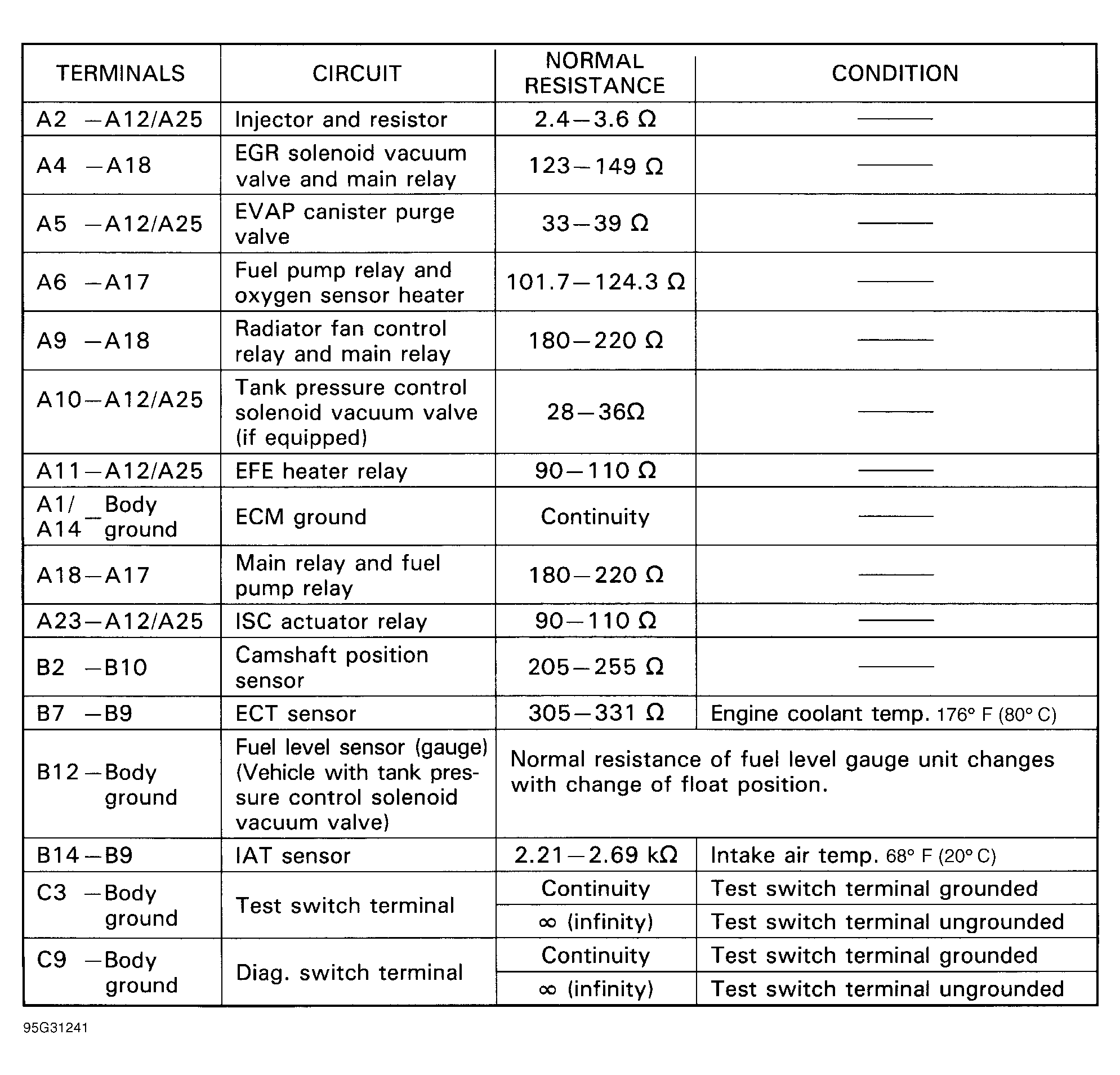

Fig 1: Circuit Resistance Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
