Windows

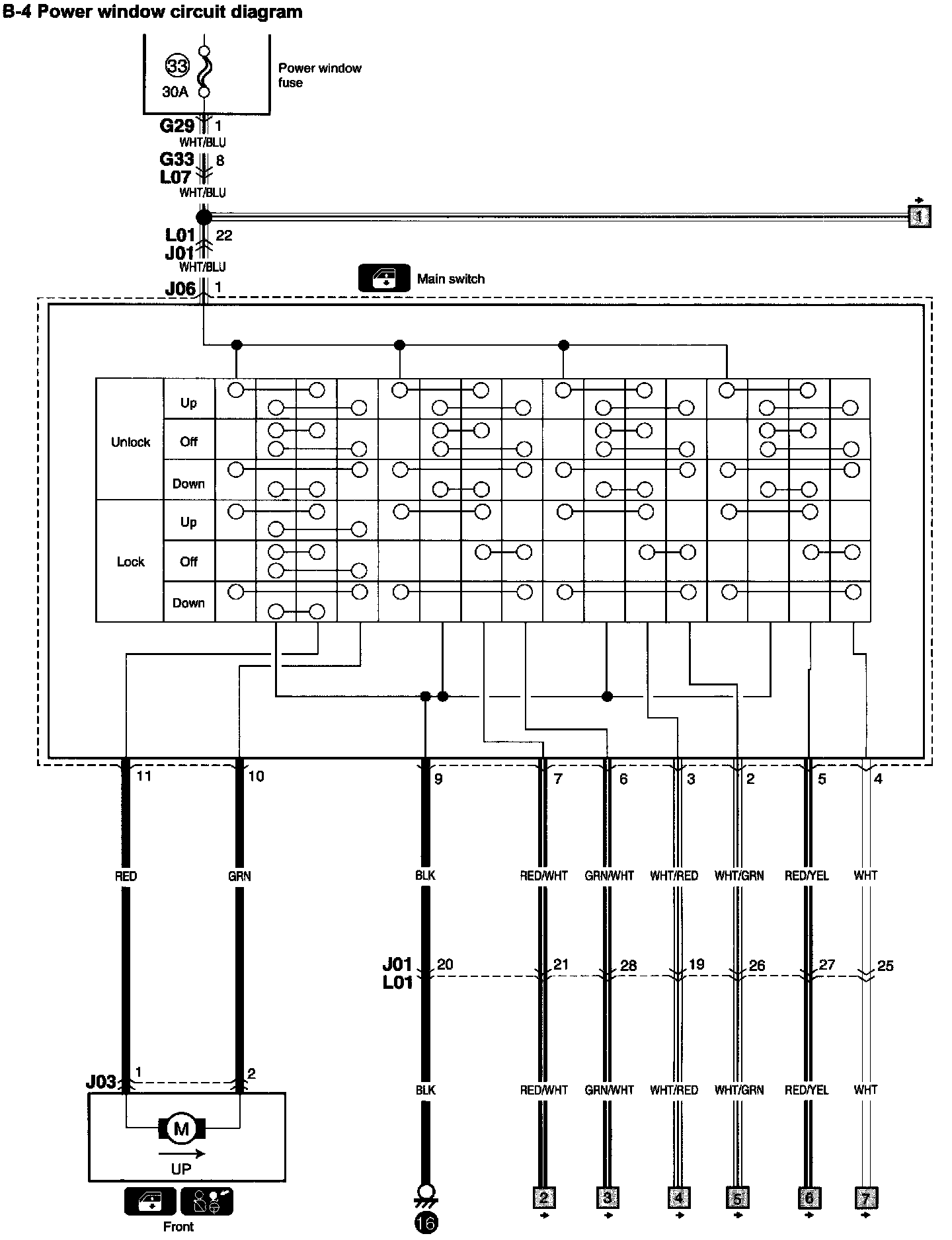

B-4 Power Window Circuit Diagram Part 1:

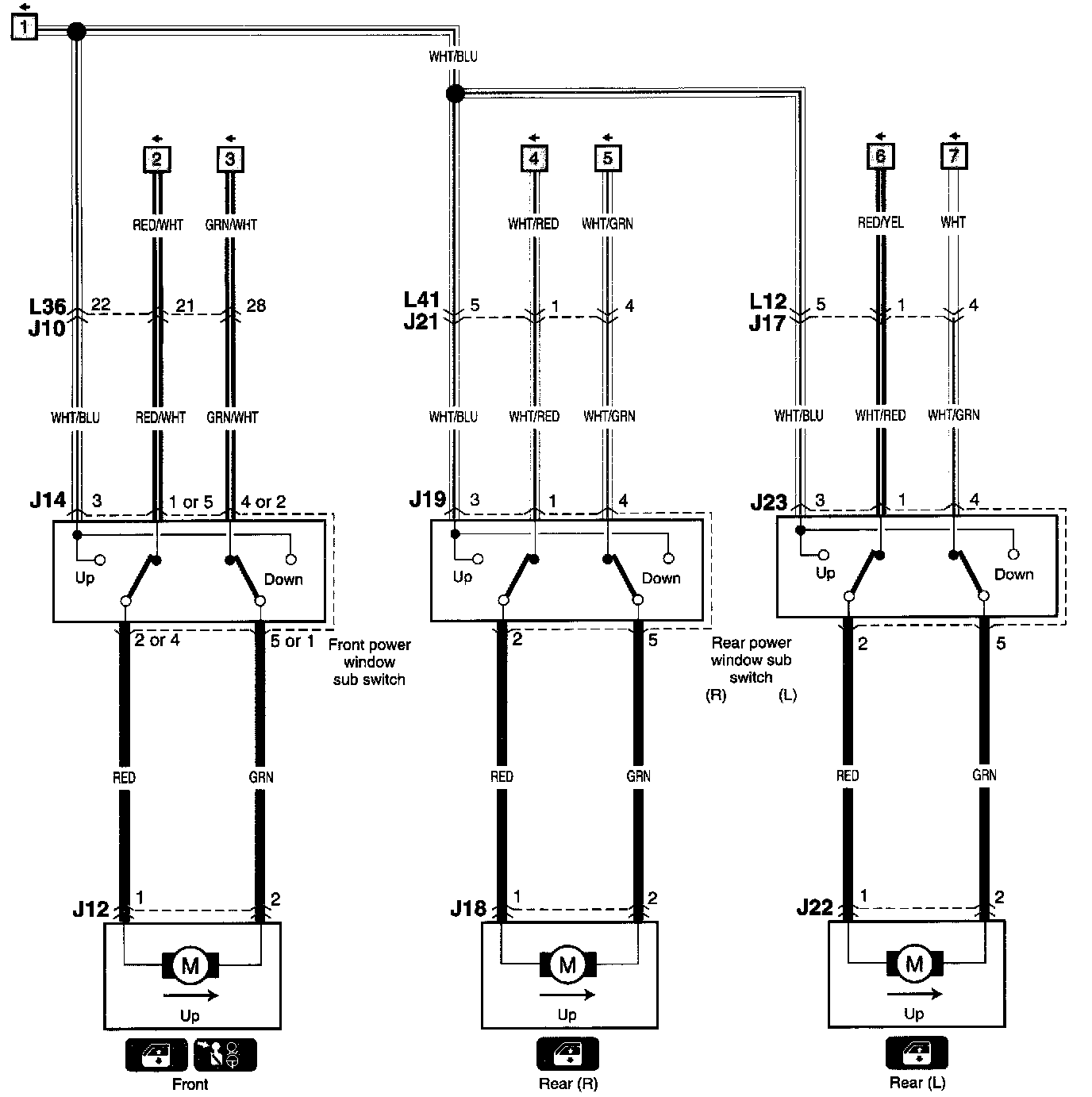

B-4 Power Window Circuit Diagram Part 2:
NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
NOTE: To view other electrical diagrams referred to in these schematics, see System Circuit Diagrams by letter (A Thru Z) Electrical Diagrams
