Automatic Transaxle Unit Components

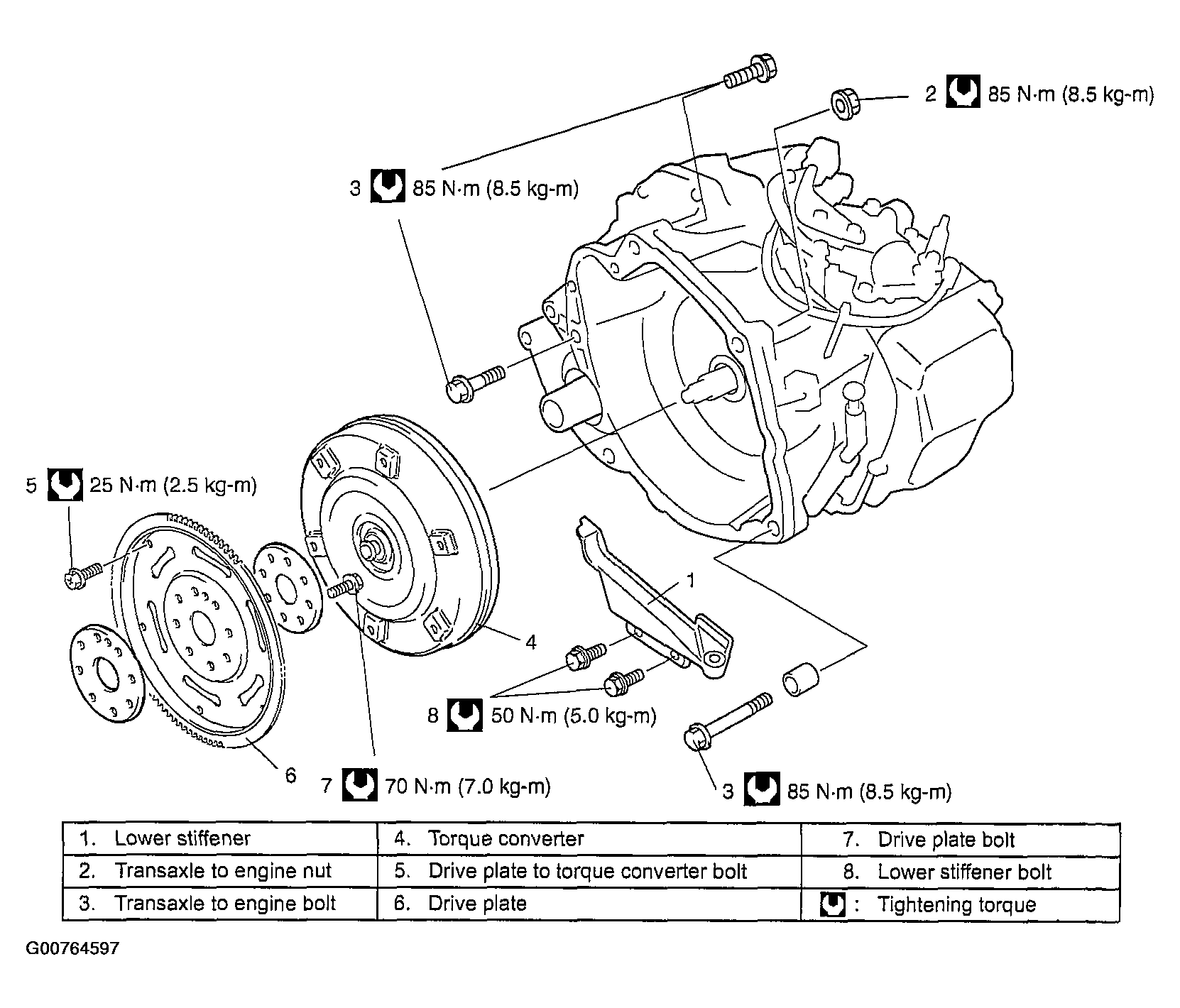

Fig 1: Identifying Automatic Transaxle Unit Components
G00764597Courtesy of SUZUKI OF AMERICA CORP.
