Select Cable Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Select Cable Components

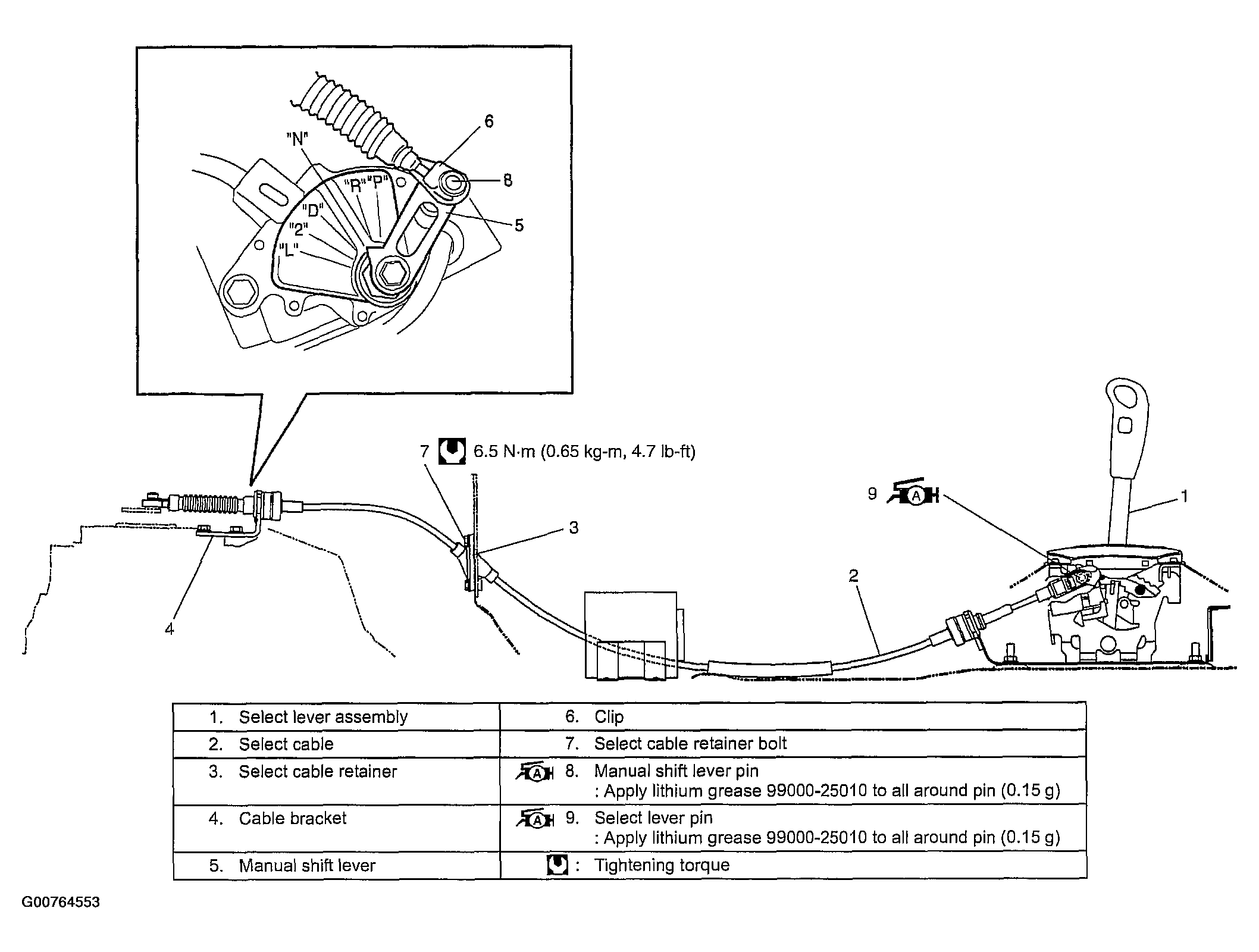

Fig 1: Identifying Select Cable Components
Courtesy of SUZUKI OF AMERICA CORP.
