Tightening Torque Specifications

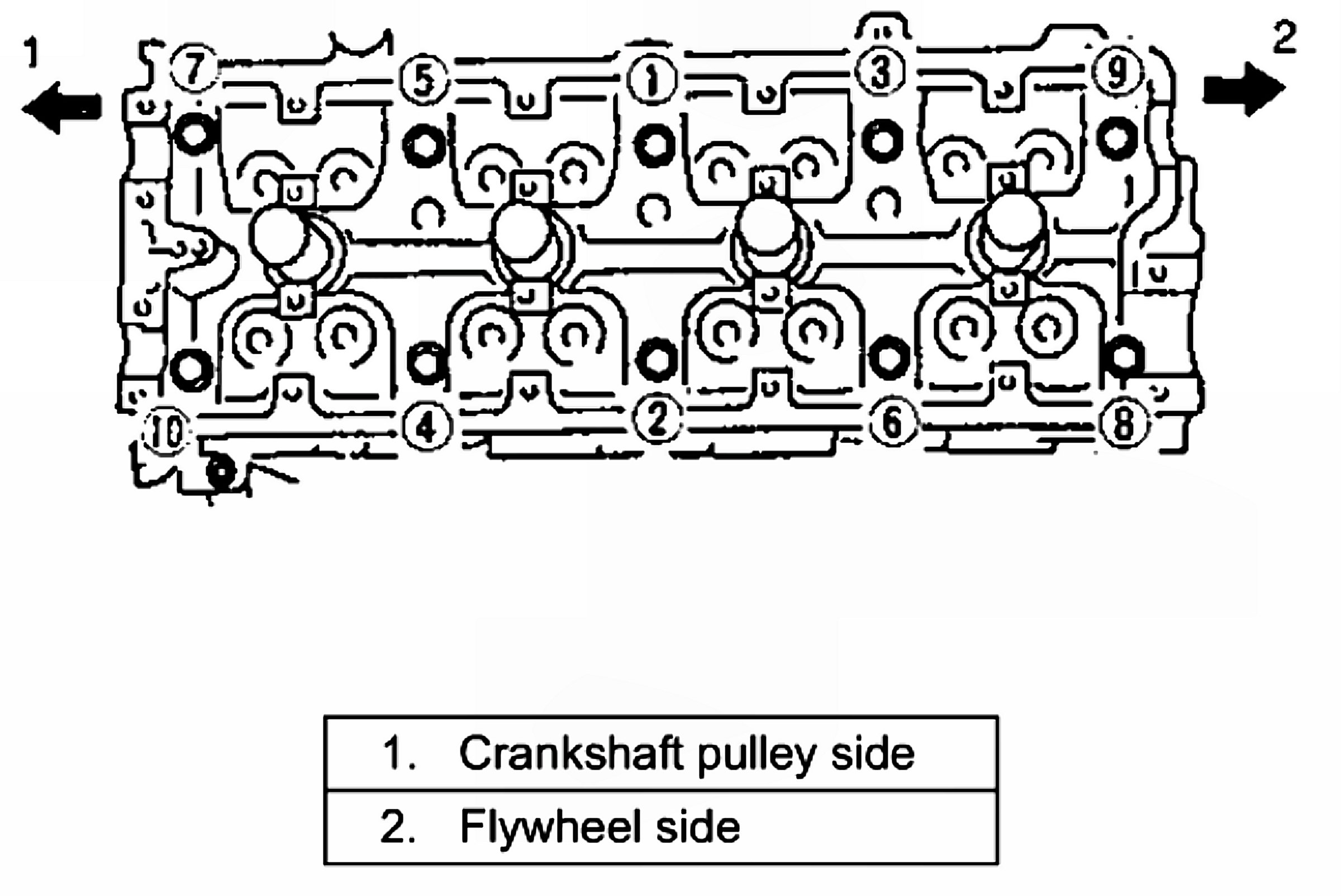

a) Tighten all bolts to 53 Nm (5.3 kgf-m, 38.5 ft. lbs.) according to numerical order (1-10).
b) In the same manner as in step a., tighten them to 84 Nm (8.4 kgf-m, 61.0 ft. lbs.)

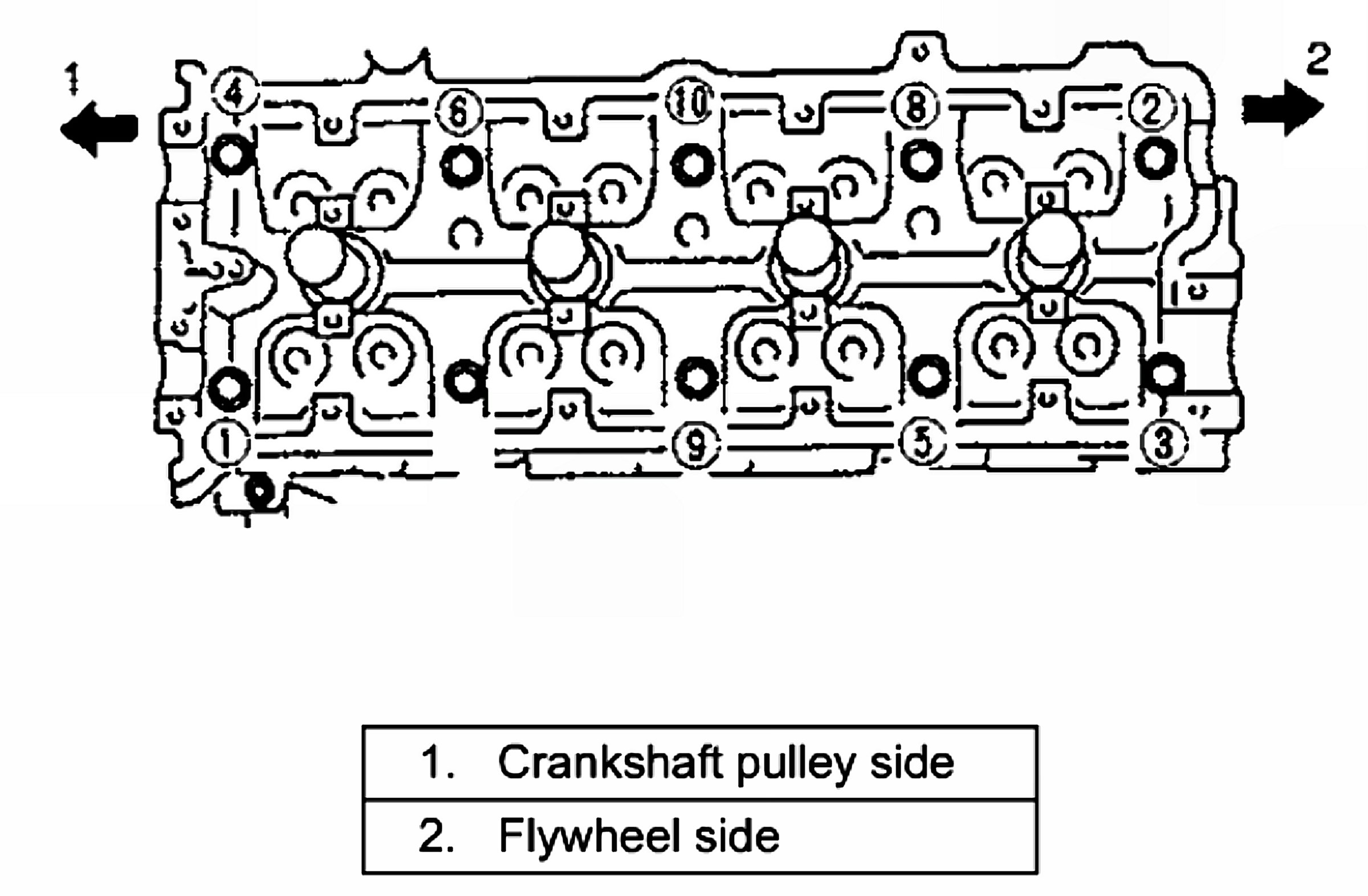

c) Loosen all bolts until tightening torque is reduced to 0 in the illustrated order (1-10).





d) Tighten all bolts to 53 Nm (5.3 kg-m, 38.5 lb-ft) according to numerical order. (1-10) in the figure.
e) In the same manner as in step d) again, tighten them to specified torque.

Tightening Torque
Cylinder head bolt (a): 105 Nm (10.5 kg-m, 76.0 lb-ft)
Cylinder head bolt (hex hole bolt) (b): 11 Nm (1.1 kg-m, 8.0 lb-ft)

NOTE:
Be sure to tighten M6 bolt after securing the other bolt.
