System Specifications

FRONT DRIVE SHAFT





Tightening Torque Specifications

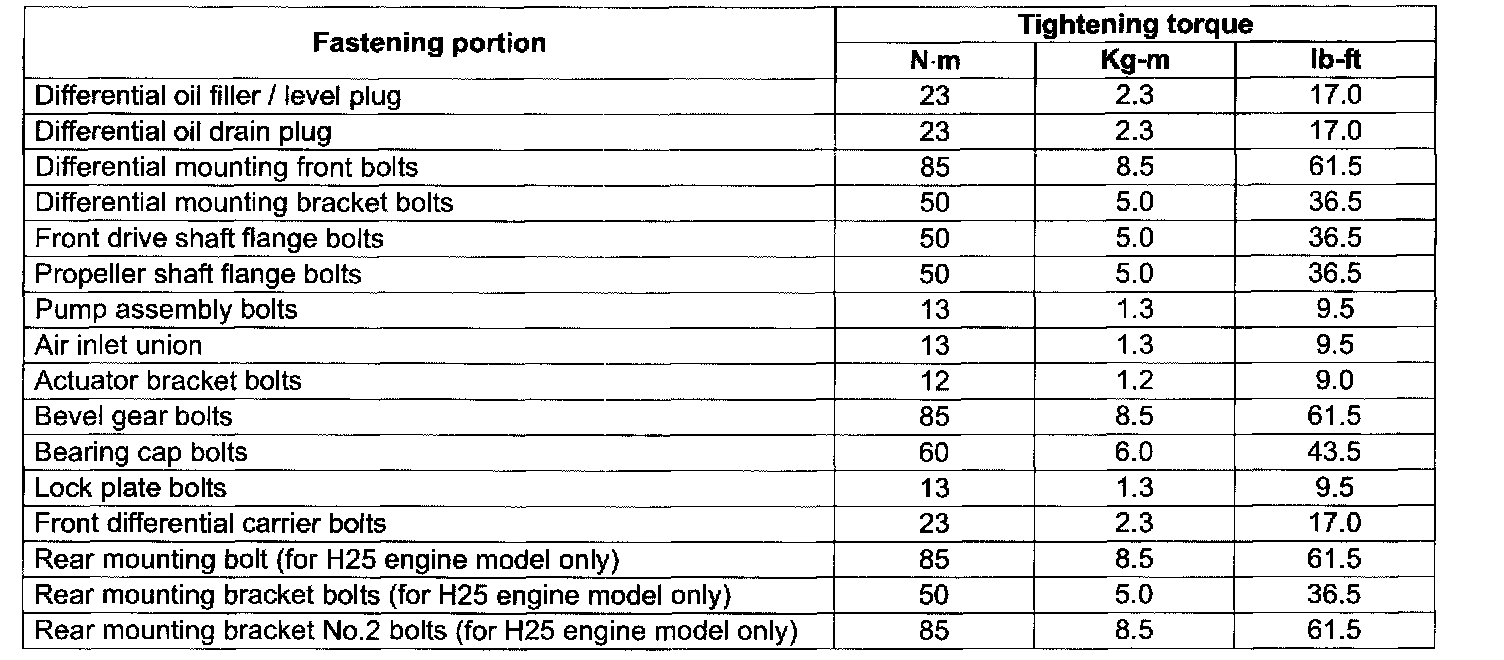

FRONT DIFFERENTIAL





Tightening Torque Specifications

REAR DIFFERENTIAL





Tightening Torque Specifications

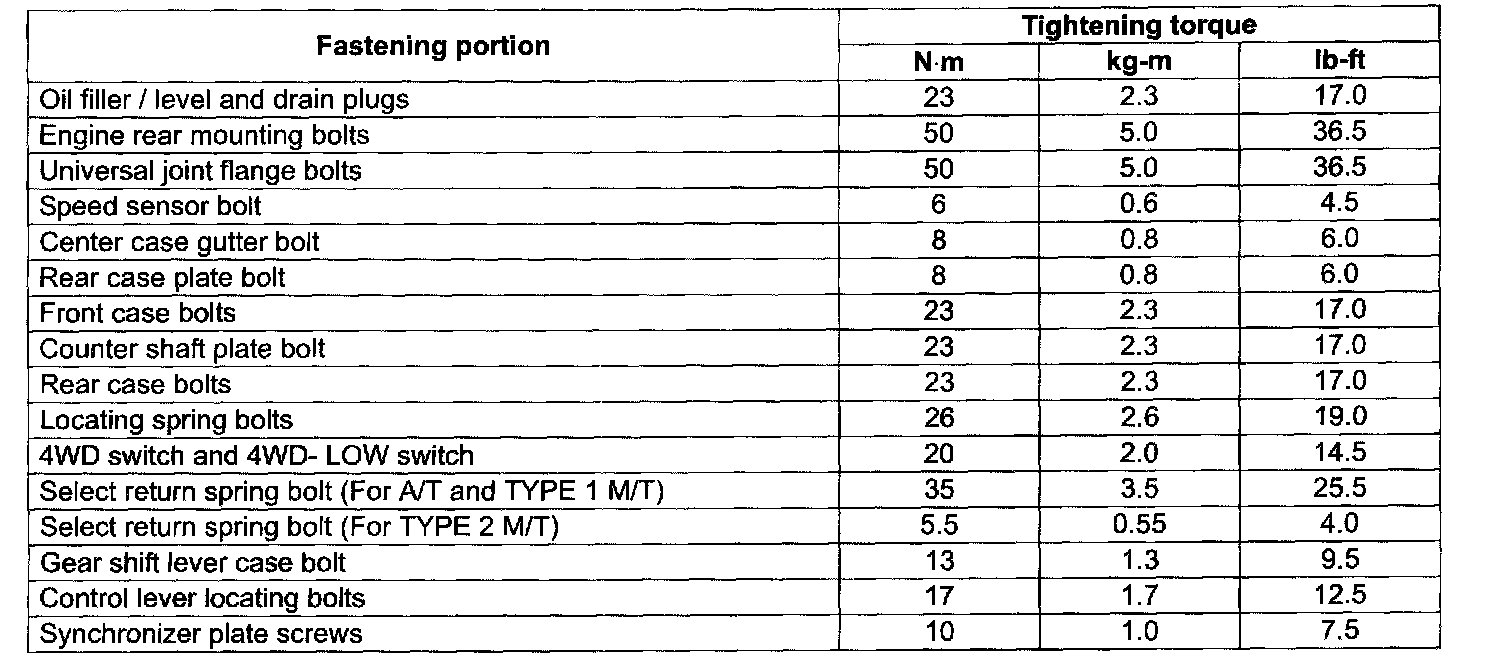

TRANSFER





Tightening Torque Specifications

PROPELLER SHAFT





Tightening Torque Specifications

AUTOMATIC TRANSMISSION





General Specifications





Tightening Torque Specifications

MANUAL TRANSMISSION
Type 1





Tightening Torque Specifications

Type 2





Tightening Torque Specifications

CLUTCH





Tightening Torque Specifications
