Fuel Level Sensor: Testing and Inspection

Fuel Level Sensor (Sender Gauge) Inspection
Remove fuel pump assembly referring to "Fuel Pump Removal and Installation".

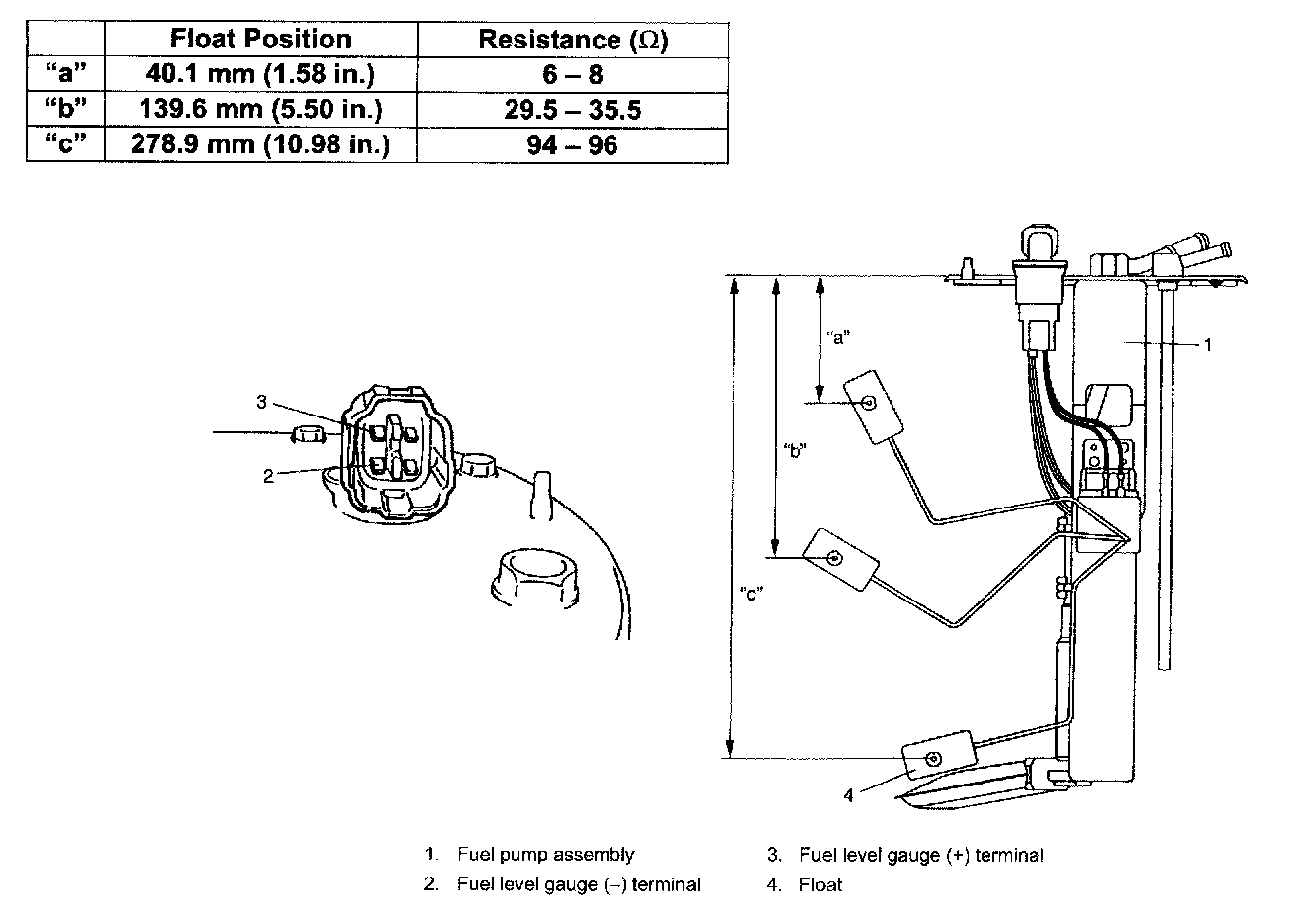

Use an ohmmeter to confirm that resistance of sender gauge unit changes with change of float position.

Fuel Level Sensor Specification:

If measured value is out of specification, replace fuel sender gauge.
