System Specifications

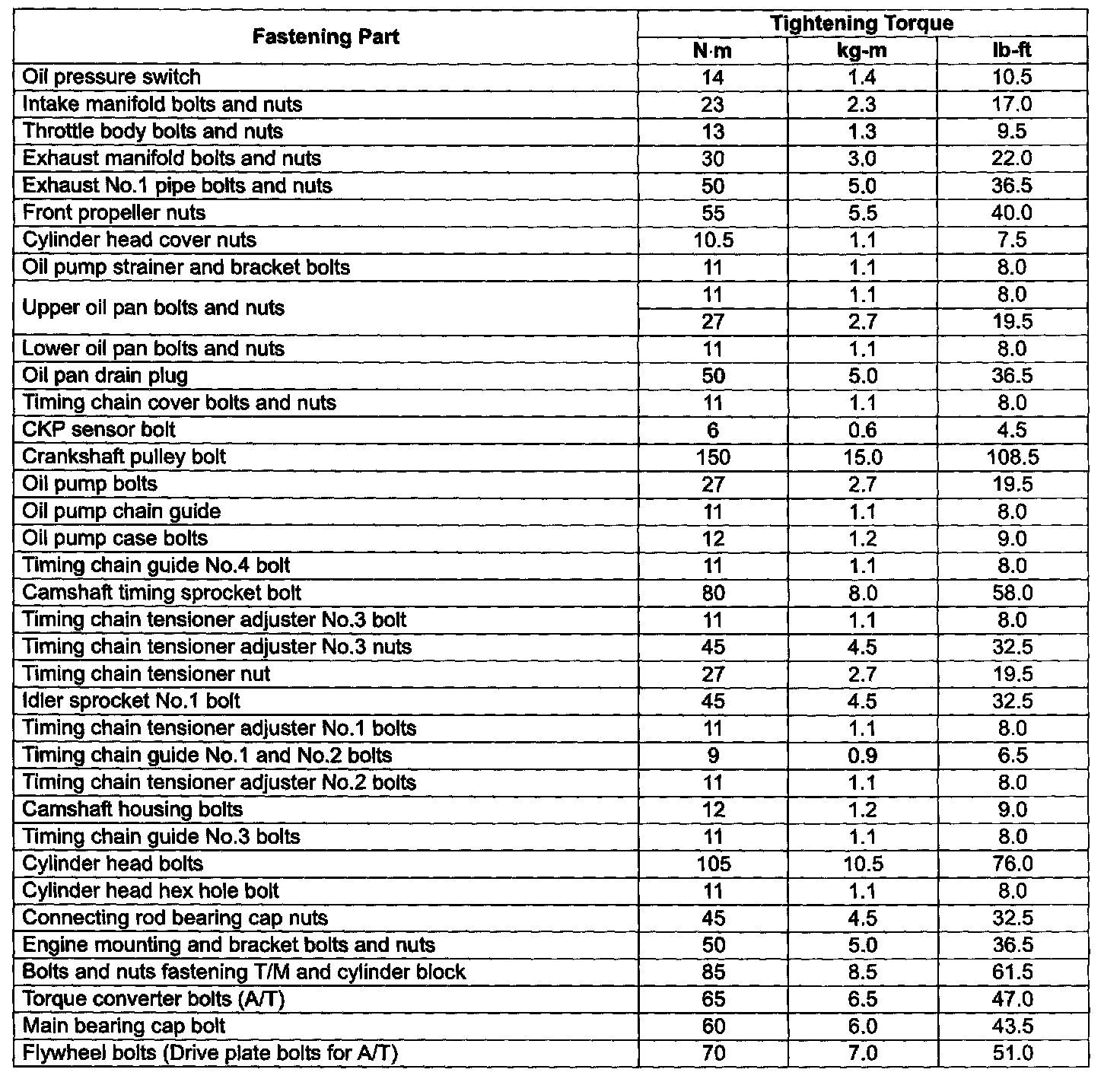

Tightening Torque Specifications

Engine Mechanical

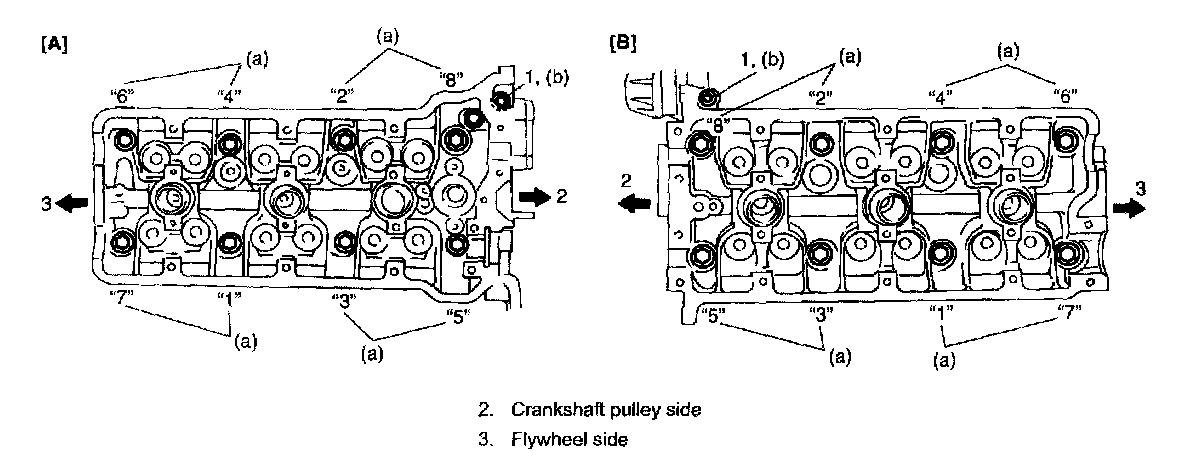

Bolt Sequence

Camshaft housing bolts

Cylinder head bolts
Note: Mutiple step procedure. Refer to Component Service for complete procedure. Service and Repair

Crankcase bolts
Note: Multiple step procedure. Refer to Component Service for complete procedure.Service and Repair
