EVAP Control System Monitor: Operation

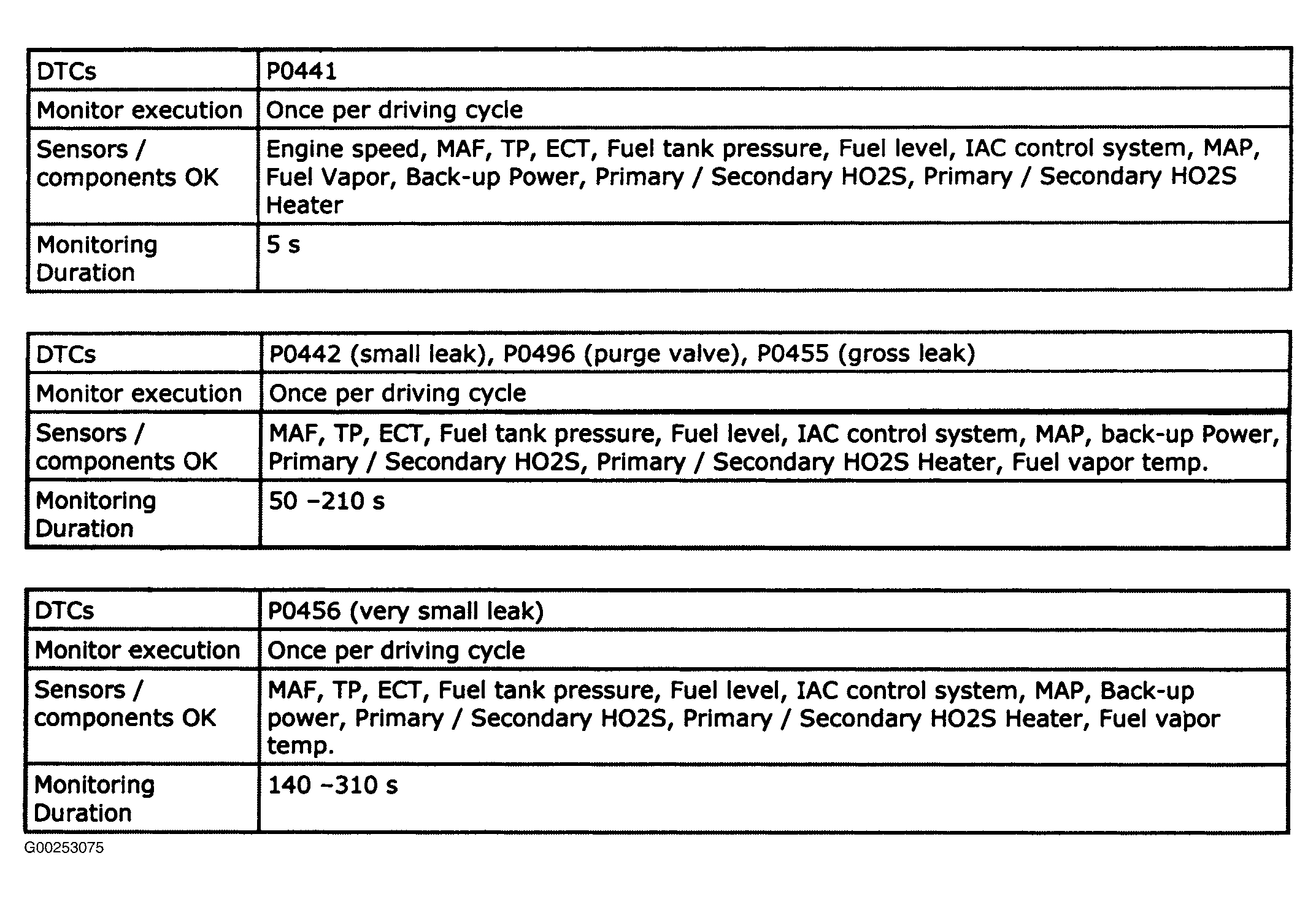

Fig 1: EVAP Control Monitor Operation

G00253075

Courtesy of SUZUKI OF AMERICA CORP.
