Automatic Transaxle Assembly Components

Automatic Transaxle Assembly Components

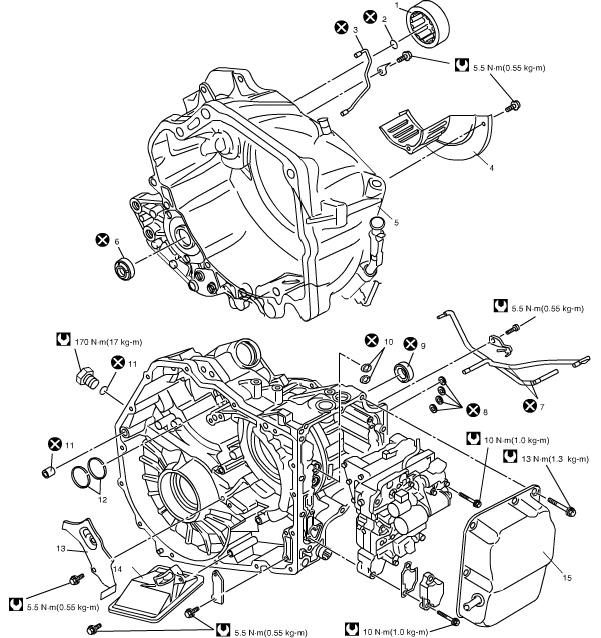

Automatic Transaxle Assembly Components:

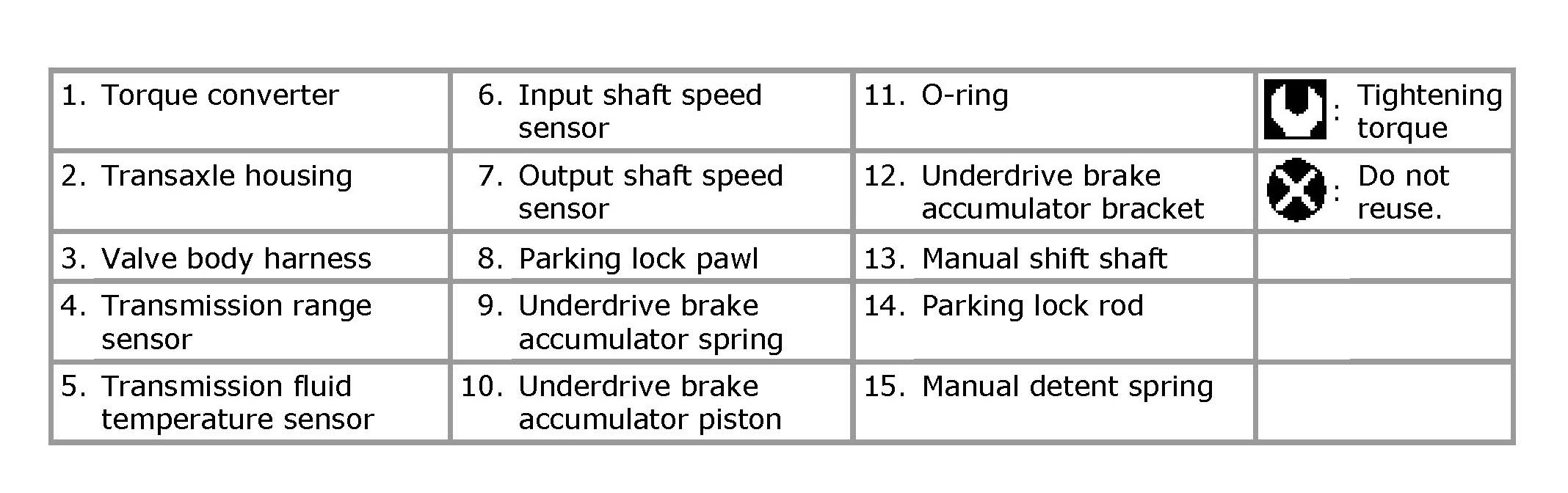

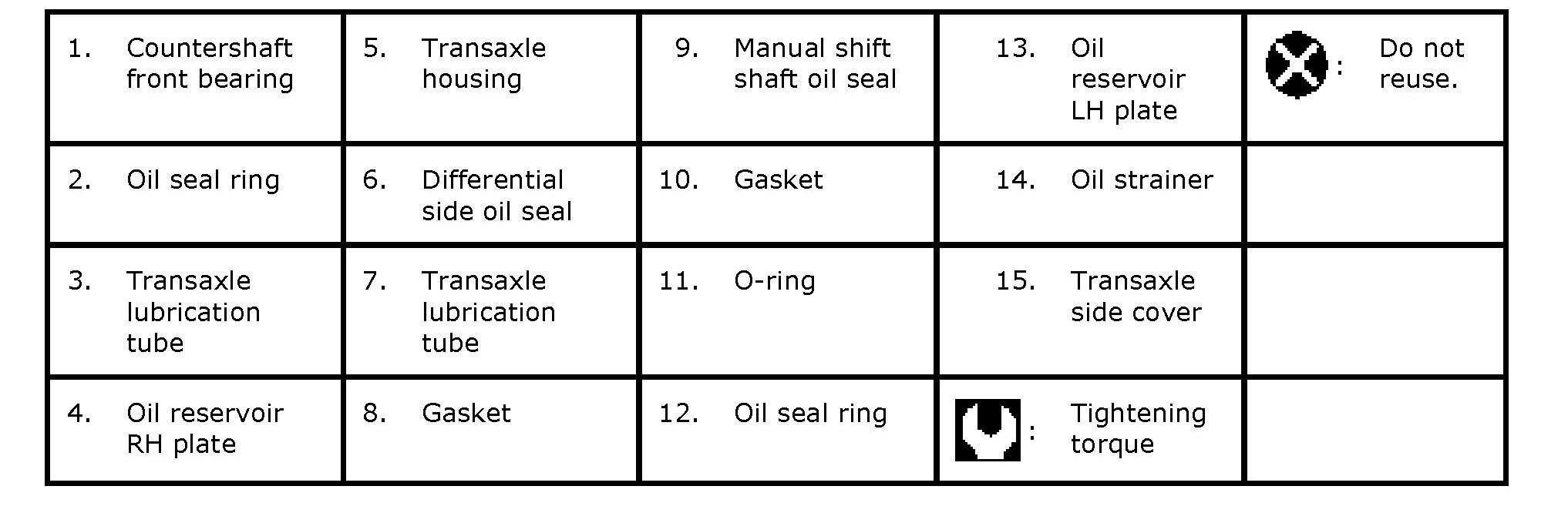

Automatic Transaxle Assembly Components:

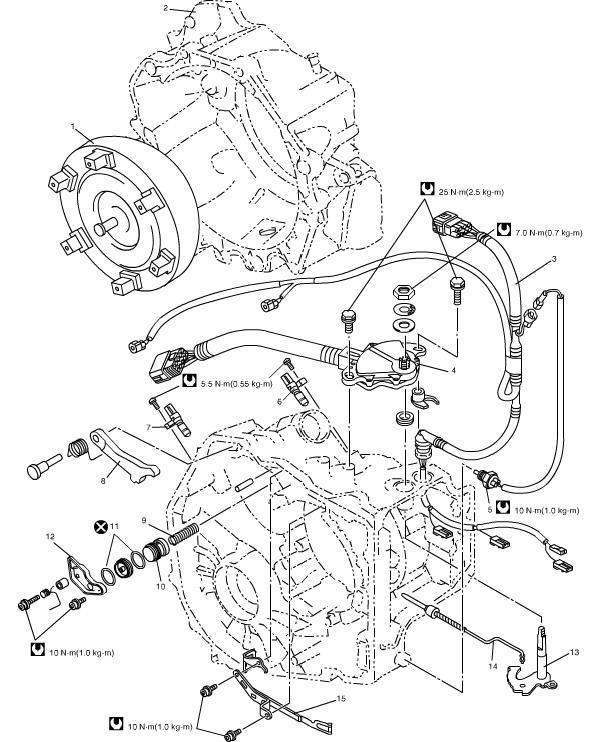

Automatic Transaxle Assembly Components:




Automatic Transaxle Assembly Components:

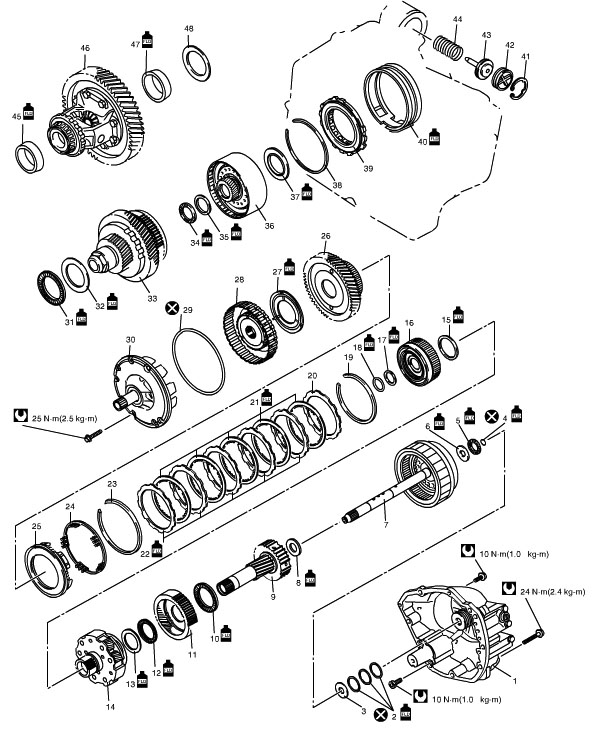

Automatic Transaxle Assembly Components:

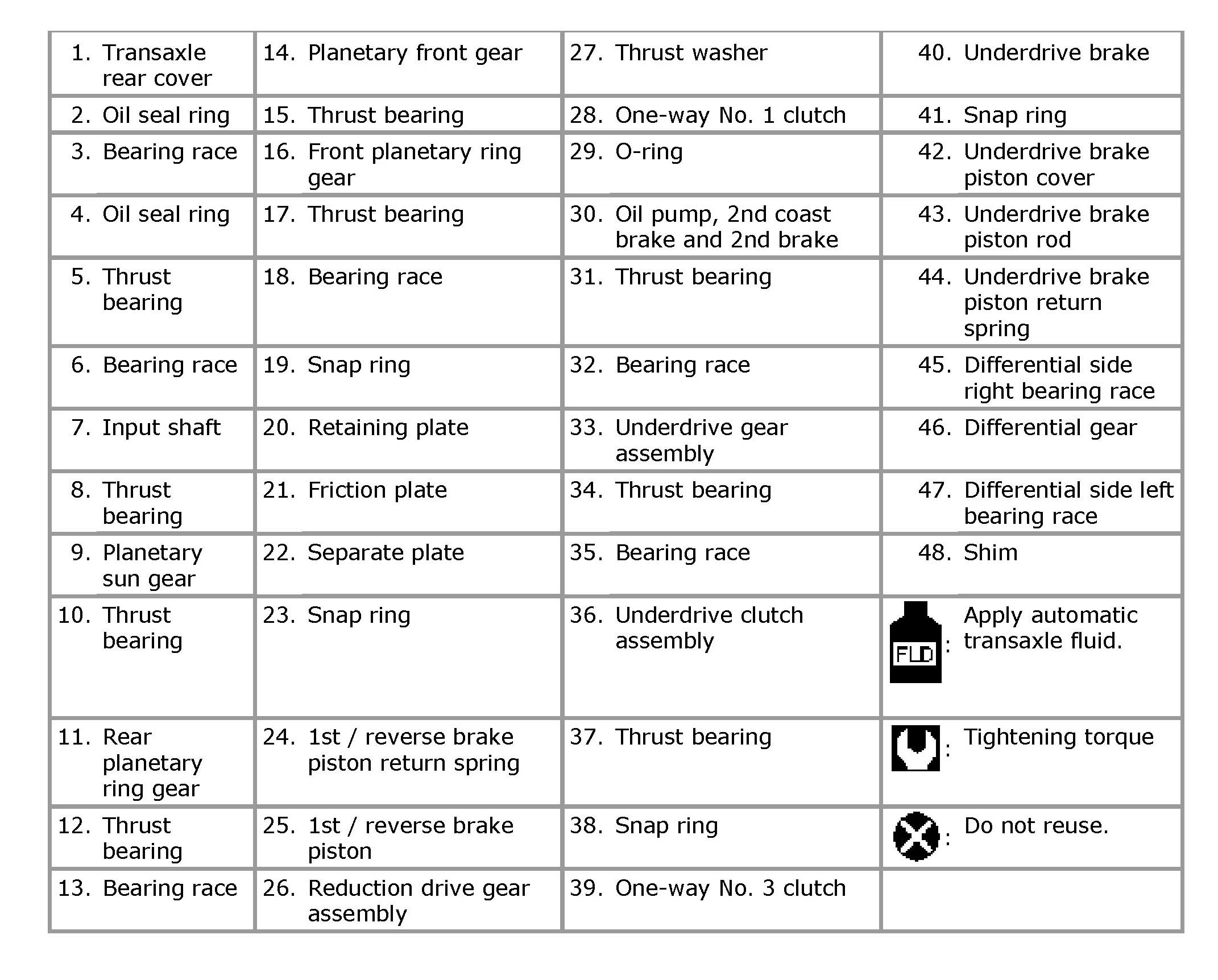

Automatic Transaxle Assembly Components:
