ECM Wiring Diagram - 1/7
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

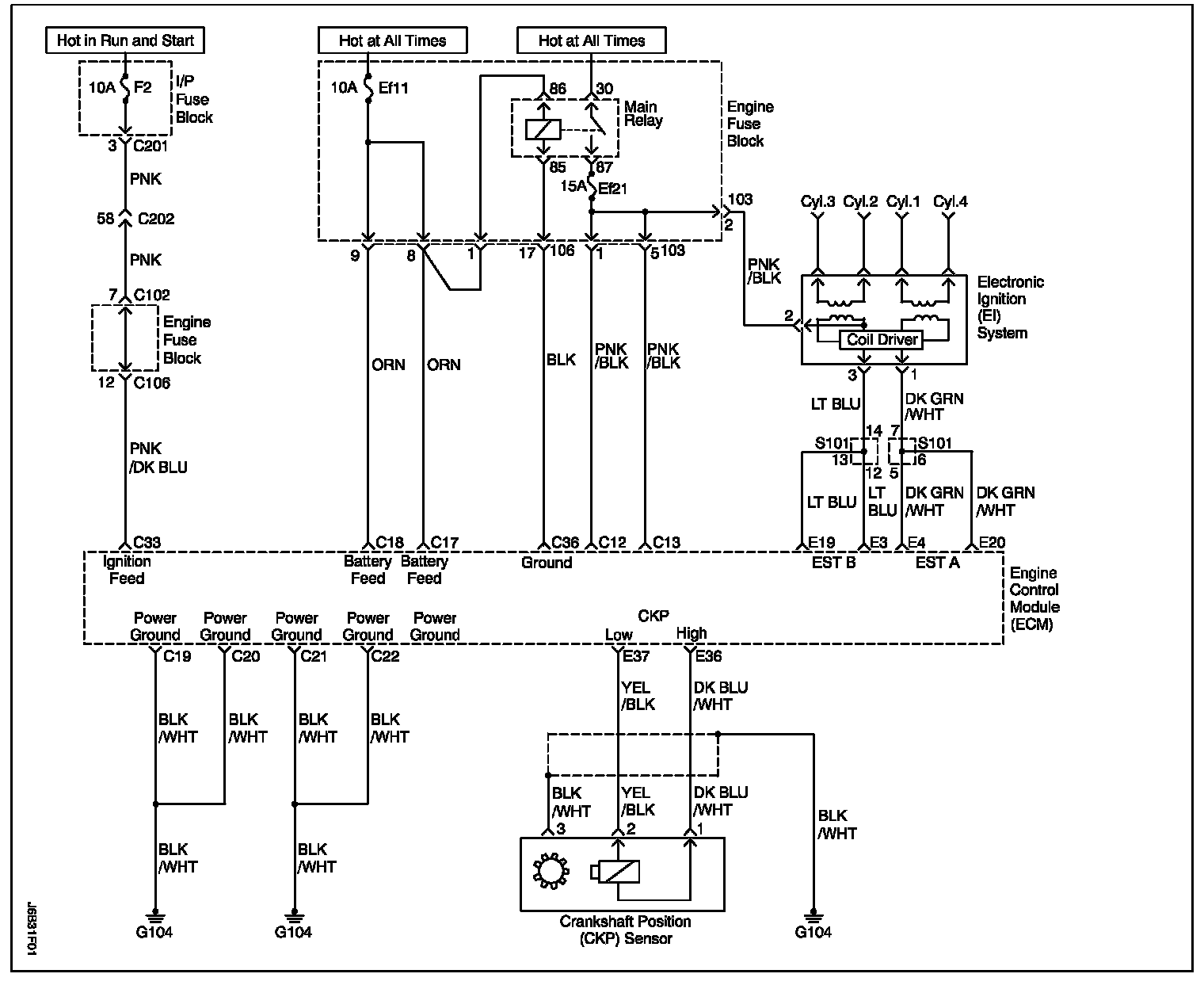

ECM Wiring Diagram - 1/7
ECM Wiring Diagram - 1/7:
