Engine And Emission Control System Diagram

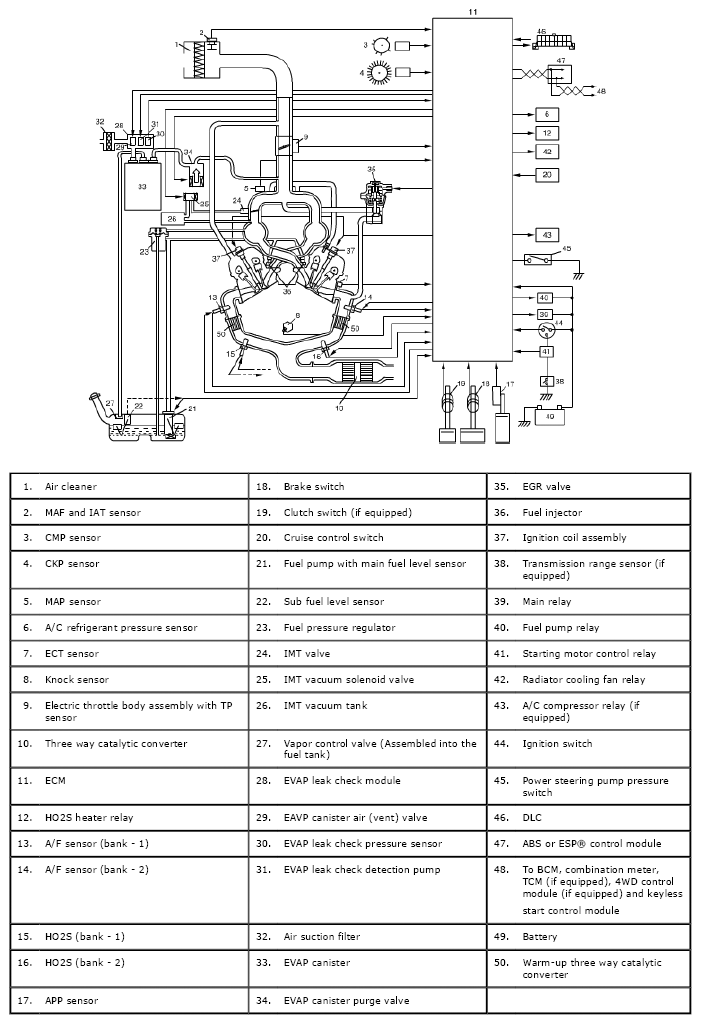

Fig 1: Engine & Emission Control System Diagram
G04807062Courtesy of SUZUKI OF AMERICA CORP.
