2006
>>
Reno Premium, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Performance - Diagnostics - Introduction
>>
Schematic & Routing Diagram
>>
ECM Wiring Diagram - 5/7
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
ECM Wiring Diagram - 5/7

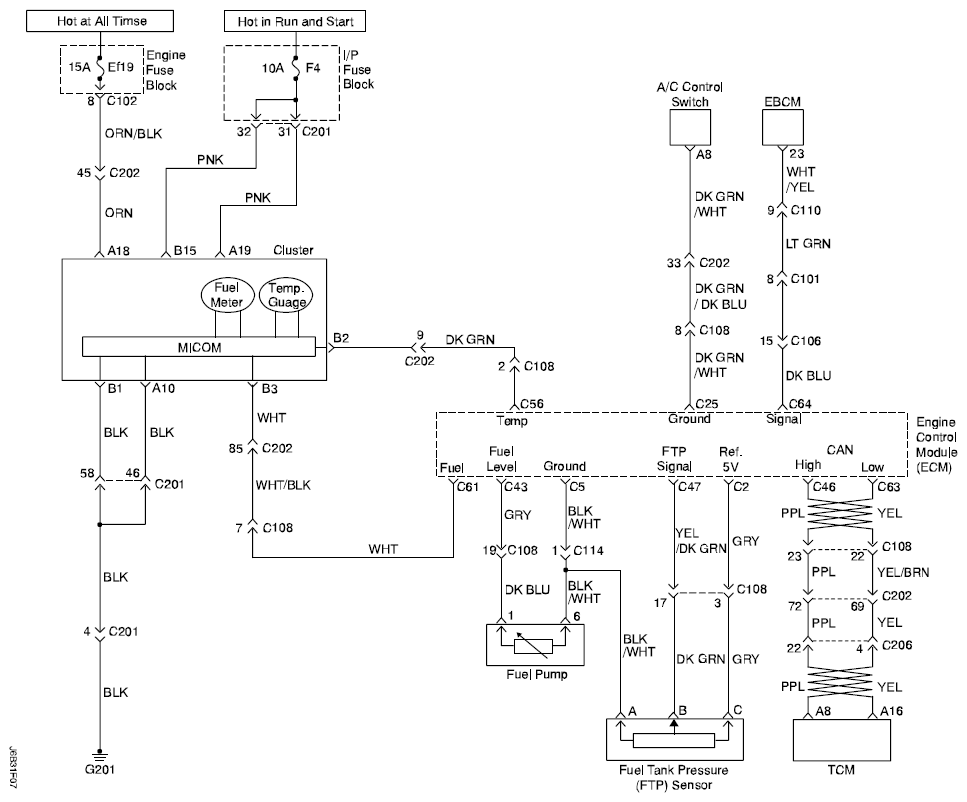

Fig 1: ECM Wiring Diagram - 5/7
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
